This machine is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Gear ratio | 23:1 |
| Wire rope (diameter x length) | Φ 11mm x 25metre |
| Mounting dimension and bolts | 300mm x 280mm 8-M12 |
Product Highlights
Points stated for this build:

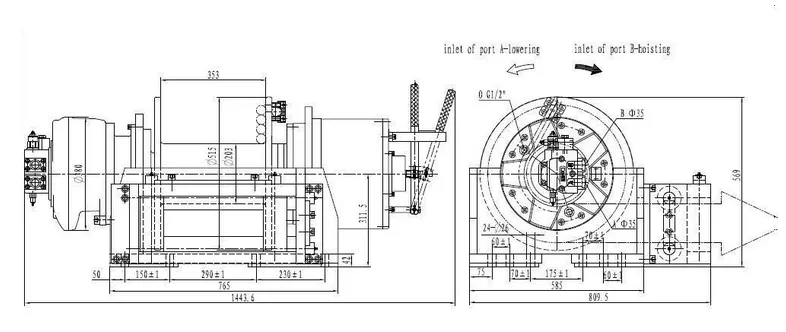

- Outline drawing of 30 ton hydraulic recovery winch/truck winch
- The winches can get two speed if fitted with variable displacement hydraulic motor
- When fitted with hydraulic axial piston motor, the working pressure and power can be greatly improved
- 1. Safe and reliable performance
- 2. high starting& working efficiency
- 3. Reliable operation with little noise
Dimensions & Packing
Dimensions and shipping data are stated as wire rope (diameter x length) of Φ 11mm x 25metre. For heavy units the packing format is part of the quote: skid, crate or container loading changes both the freight cost and the unloading equipment required on site.
Customisation & OEM Service
Options include wear-liner grade, drive type and the guards and chute work around the discharge. Share the installation conditions and a feasibility answer is returned with the price. For this item, minimum order quantity is 1 Piece and the reference price starts at US$5,000.00-7,000.00 per set.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.
Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
