Produced in China for mining contractors, beneficiation plants and equipment distributors, this mining locomotive is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.
Specifications
| Track gaugemm | 500/600/762 /900 |
| Wheelbasemm | 550 |
| Minimum curve radius | 4m |
| Rolling diameter of wheels | 400mm |
| size | 1950mⅹ800mmX1550mm |
| weight | 1300 |
| maximum traction force | 2.36KN |
| Hourly tractive force | 2KN |
| Small hourly rate | 4.5Km/h |
| voltage | 60V |
| Motor Power | 3KW |
| Towing height | 320mm |
| Braking mode | hydraulic pressure |
| Speed Control | stepless speed change |
| Wheel rolling circle diameter | 400mm |
Capacity & Drive
Rated performance is given as voltage rated at 60V. Those figures are quoted against a stated feed material and moisture content, so a site with harder rock or a wetter feed should expect a lower effective throughput than the nominal number.
Dimensions & Packing
Dimensions and shipping data are stated as rolling diameter of wheels of 400mm. Overall dimensions and unit weight decide the transport class, the lifting points and whether the machine ships as a whole unit or in modules for site assembly — worth fixing before freight is quoted.
Customisation & OEM Service
The unit can be built to your duty: alternative wear material, a different motor voltage or drive arrangement, and a modified discharge setting can all be quoted against your specification. Send the feed material, target output and site power supply and the factory will confirm what is feasible on this frame size. For this item, minimum order quantity is 1 Piece and the reference price starts at US$1,500.00 per set.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.

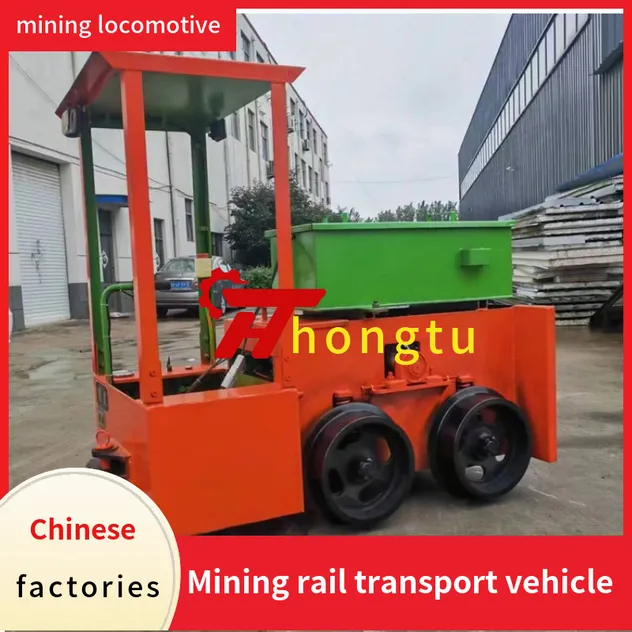

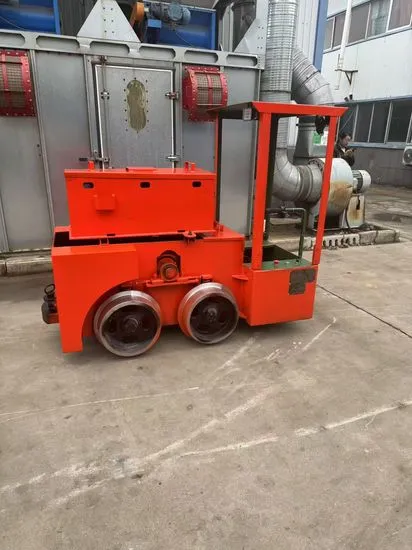

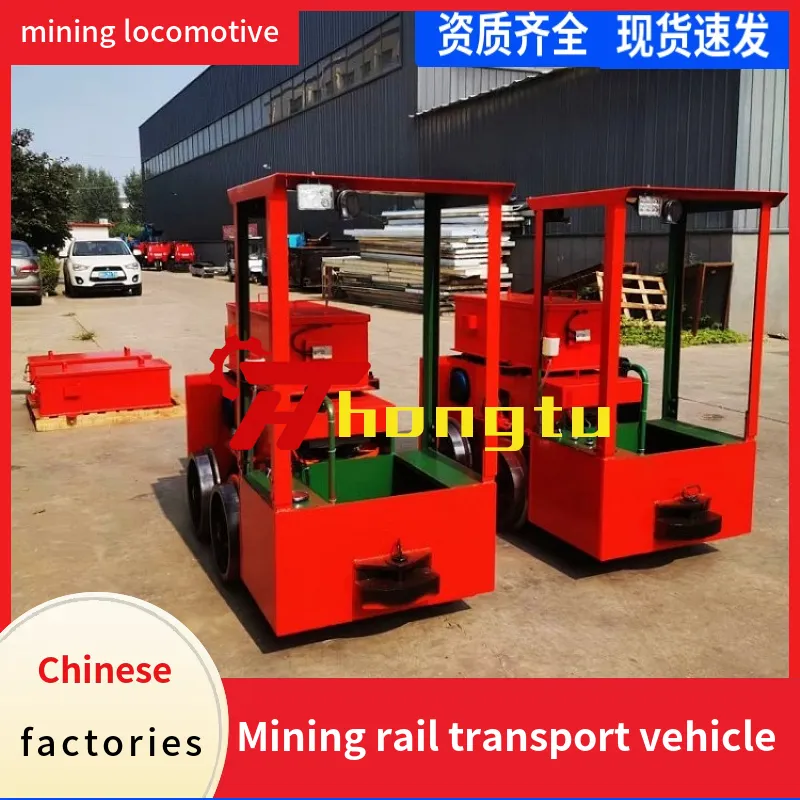

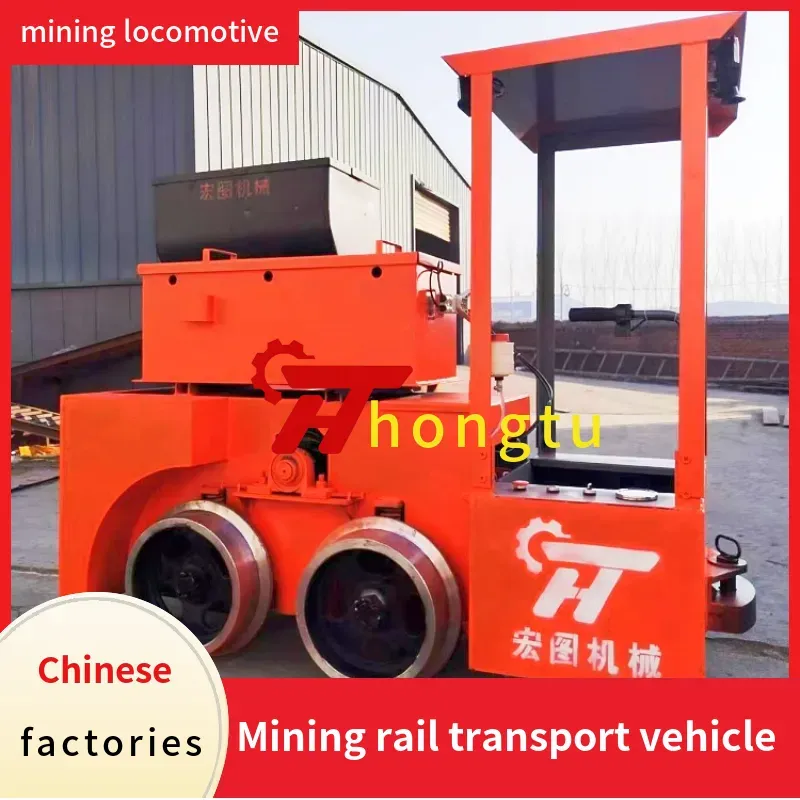

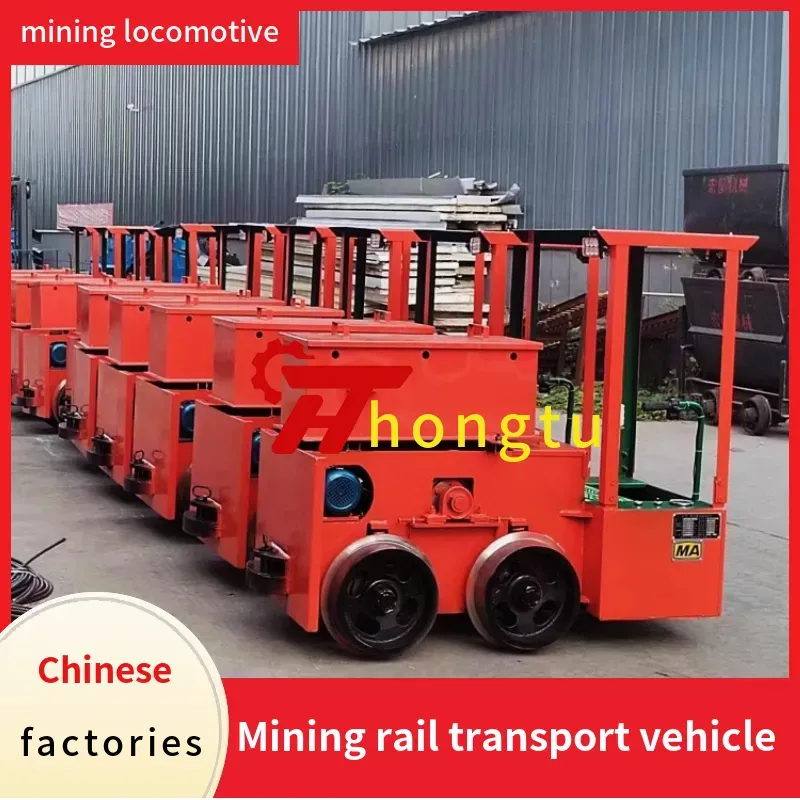

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
