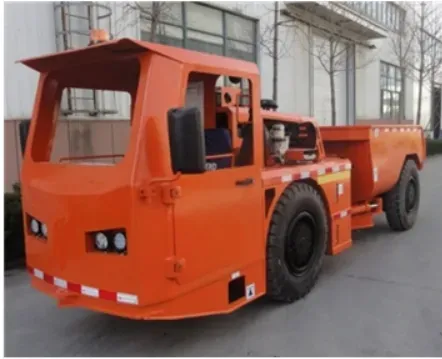

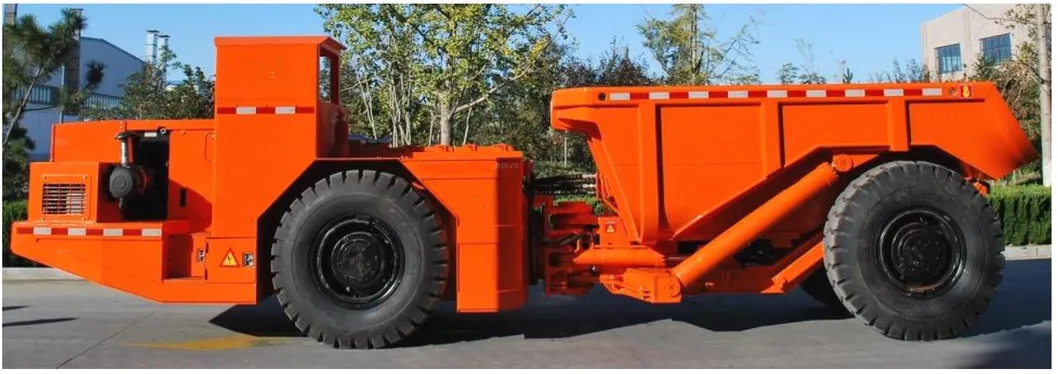

Produced in China for mining contractors, beneficiation plants and equipment distributors, this machine is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.

Specifications

Overall dimensions (mm)	5780× 1400 ×2000
Rated load capacity	5000 kg
Maximum traction force	65kN
Standard bucket capacity	2. 5m³
1st gear	4.3 km/h
2nd gear	9.3 km/h
3rd gear	18.4 km/h
Carriage unloading angle	65°
Approach angle	15°
Operating weight	7000 kg
Front axle load	4340 kg
Rear axle load	2710 kg
Operating ambient temperature	-15°C~+45°C
Diesel engine	CUMINS QSF2.8
Rated power	54 kW @ 2400rpm
Maximum torque	270Nm@1400rpm
Number of cylinders	Inline 4-cylinder
Displacement	2.8 L
Cooling system	water-cooled engine
fuel system	Integrated hand pump
Air intake system	Turbo Dry air filtration, two-stage filtration
Starting system	24V Starting motor
emission standard	EURO III
exhaust system	DOC+POC+Silencer
Average fuel consumption, at 50% load	5.5L/h
Fuel tank capacity	88L
Dana RT1201FT20321	Integrated
Front axle SHAR Rigid axle	China-made Standard Differential
Rear axle SHAR Rigid axle	China-made Standard Differential
Model	10 .00-20
Joint standards	JIC standard
Rubber hose standard	GB3683
Working hydraulic oil tank capacity	73L
Steering hydraulic cylinder	2 pcs
Steering pump form	gear pump
Lifting cylinder	2 pcs
Working main valve	open
Working pump form	gear pump
Warning and alarm system	Audible and visual alarm
Dashboard	IFM 4.3-inch color display screen Fully functional rocker switch control
Central articulation	Slewing bearing
tank	Integrated with rack
alternator	28 V, 80A
Battery	2×12 V, 80Ah
Starter	24V, 3KW
lighting	LED lights 6pcs in front rack 2pcs in the rear rack
Horn/backup alarm	standard
Flashing warning light	standard
Control system	color display Built in diagnosis system
Turn signal	2pcs in front rack 2pcs in the rear rack
Red and green indicator lights	2pcs in front rack 2pcs in the rear rack
Portable fire extinguisher	2kg 1pc
The main power switch can be locked	standard
Emergency brake button	1 pc
Manual relief device of accumulator	standard
Lock device of front&rear frame	standard
Carriage maintenance supporting device	standard
Operation manual	Chinese or English
Spare parts manual	Chinese or English
Maintenance manual	Chinese or English

Material & Construction

The rubber hose standard is stated as GB3683. That choice of wear material sets the service life of the working surfaces and, together with the casting weight, most of the unit price. It is the figure buyers confirm against a wear-life figure or a reference installation before ordering.

Capacity & Drive

Rated performance is given as rated load capacity of 5000 kg and diesel engine rated at CUMINS QSF2.8. Those figures are quoted against a stated feed material and moisture content, so a site with harder rock or a wetter feed should expect a lower effective throughput than the nominal number.

Dimensions & Packing

Dimensions and shipping data are stated as overall dimensions (mm) of 5780× 1400 ×2000. Overall dimensions and unit weight decide the transport class, the lifting points and whether the machine ships as a whole unit or in modules for site assembly — worth fixing before freight is quoted.

Customisation & OEM Service

The unit can be built to your duty: alternative wear material, a different motor voltage or drive arrangement, and a modified discharge setting can all be quoted against your specification. Send the feed material, target output and site power supply and the factory will confirm what is feasible on this frame size. For this item, minimum order quantity is 1 Piece and the reference price starts at US$40,000.00-60,000.00 per set.

Ordering & Samples

For equipment of this size the usual path is a drawing review, then a factory acceptance check before shipment. Lead time and freight are quoted against the confirmed configuration and the destination port.
