This drilling rig is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Model | WHM300 |
| Drilling depth | 300m |
| Drilling diameter | 140-325mm |
| Working air pressure | 1.7-3.0Mpa |
| Air consumption | 17-36m/min |
| Lifting force | 18T |
| Drill Cramp route | 3.6m |
| Drill pipe length | 3m |
| Rotary torque | 5700-7500 N.m |
Dimensions & Packing
Dimensions and shipping data are stated as model of WHM300. Overall dimensions and unit weight decide the transport class, the lifting points and whether the machine ships as a whole unit or in modules for site assembly — worth fixing before freight is quoted.
Customisation & OEM Service
The unit can be built to your duty: alternative wear material, a different motor voltage or drive arrangement, and a modified discharge setting can all be quoted against your specification. Send the feed material, target output and site power supply and the factory will confirm what is feasible on this frame size. For this item, minimum order quantity is 1 SET and the reference price starts at US$20,000.00 per set.
Ordering & Samples
For equipment of this size the usual path is a drawing review, then a factory acceptance check before shipment. Lead time and freight are quoted against the confirmed configuration and the destination port.

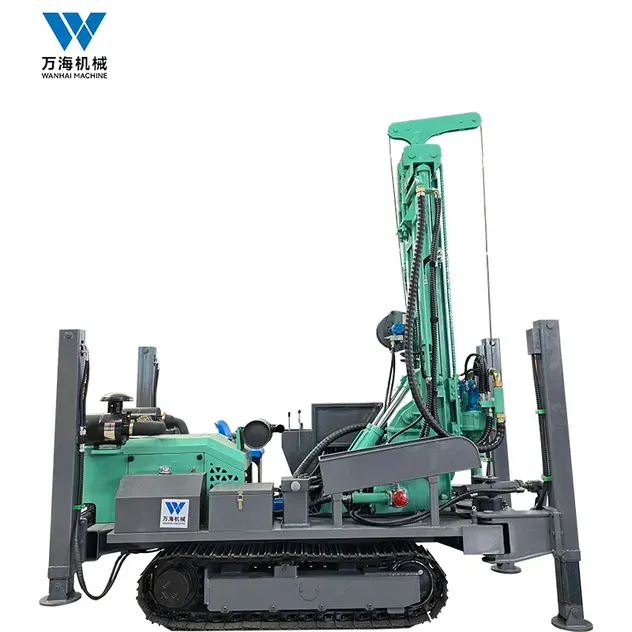

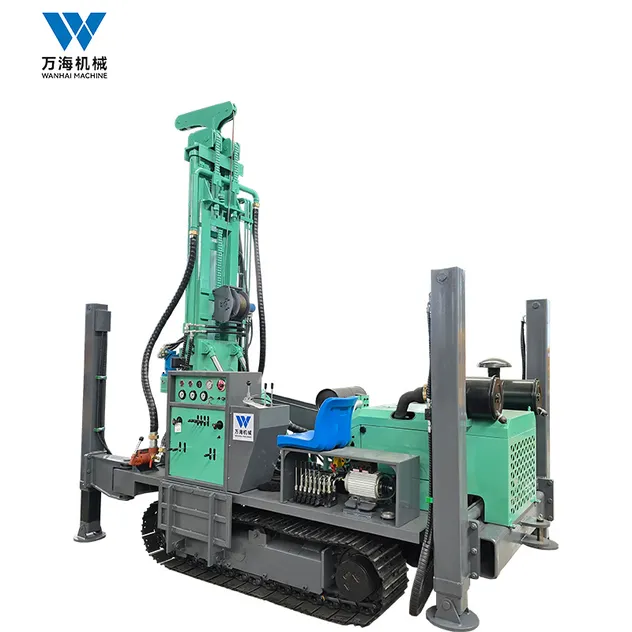

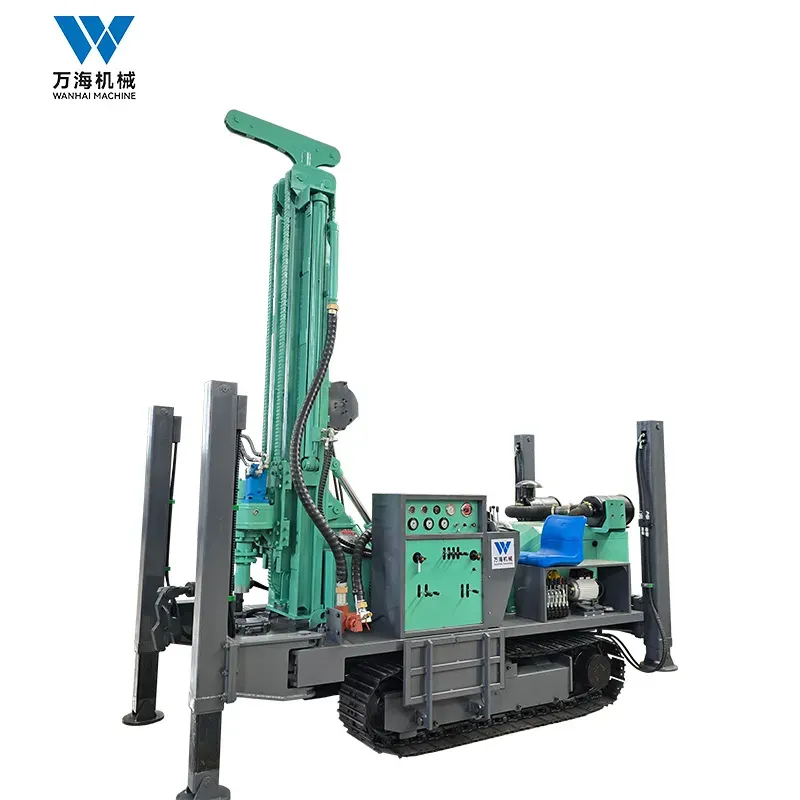

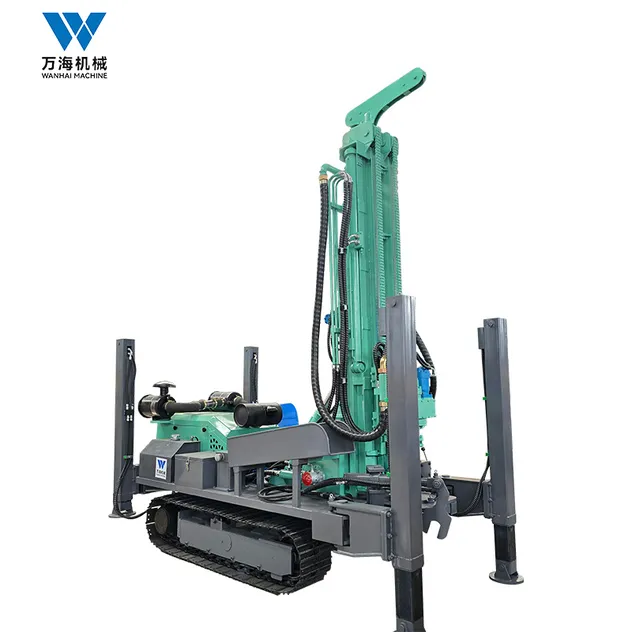

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
