This mining locomotive is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Model Name | CTY5/6,7,9G(B) |
| Adhesive Weight | 5 tons |
| Track Gauge | 600, 762 or 900mm(according to requirements) |
| Hourly System Traction | 7.06kN |
| Max. Traction | 12.26kN |
| Hourly System Speed | 7km/h |
| Supply Voltage | 90V |
| Capacity of Traction Battery | 330Ah or 385Ah ( 5 hours capacity) |
| Power of Electric Motor | 7.5 kW*2 |
| Length | 2960mm or 2860mm |
| Width | 920, 1082 or 1220mm |
| Height | 1550mm |
| Wheelbase | 850mm |
| Wheel Diameter | Φ520mm |
| Height of Traction | 210 or 320mm |
| Min. Turning Radius | 6m |
| Speed Regulating Mode | Resistance or IGBT |
| Braking Mode | Mechanical Brake |
Capacity & Drive
Rated performance is given as capacity of traction battery of 330Ah or 385Ah ( 5 hours capacity) and hourly system speed rated at 7km/h. Nameplate capacity assumes a defined feed size and bulk density. Ask for the curve rather than the single number if the plant has to hold a product-size specification.
Dimensions & Packing
Dimensions and shipping data are stated as model name of CTY5/6,7,9G(B). For heavy units the packing format is part of the quote: skid, crate or container loading changes both the freight cost and the unloading equipment required on site.
Customisation & OEM Service
Options include wear-liner grade, drive type and the guards and chute work around the discharge. Share the installation conditions and a feasibility answer is returned with the price. For this item, minimum order quantity is 1 Piece.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.

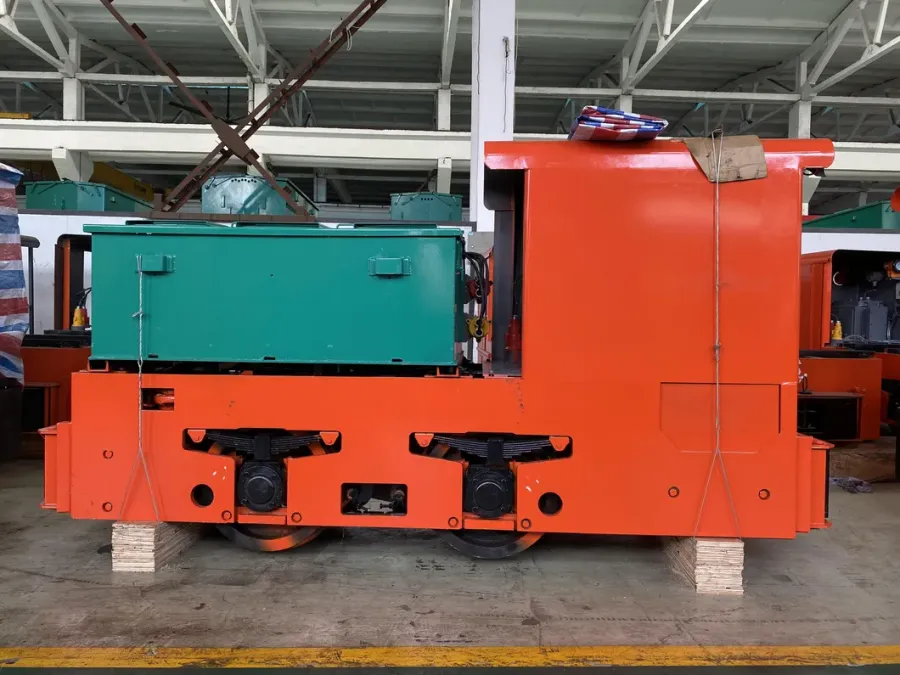

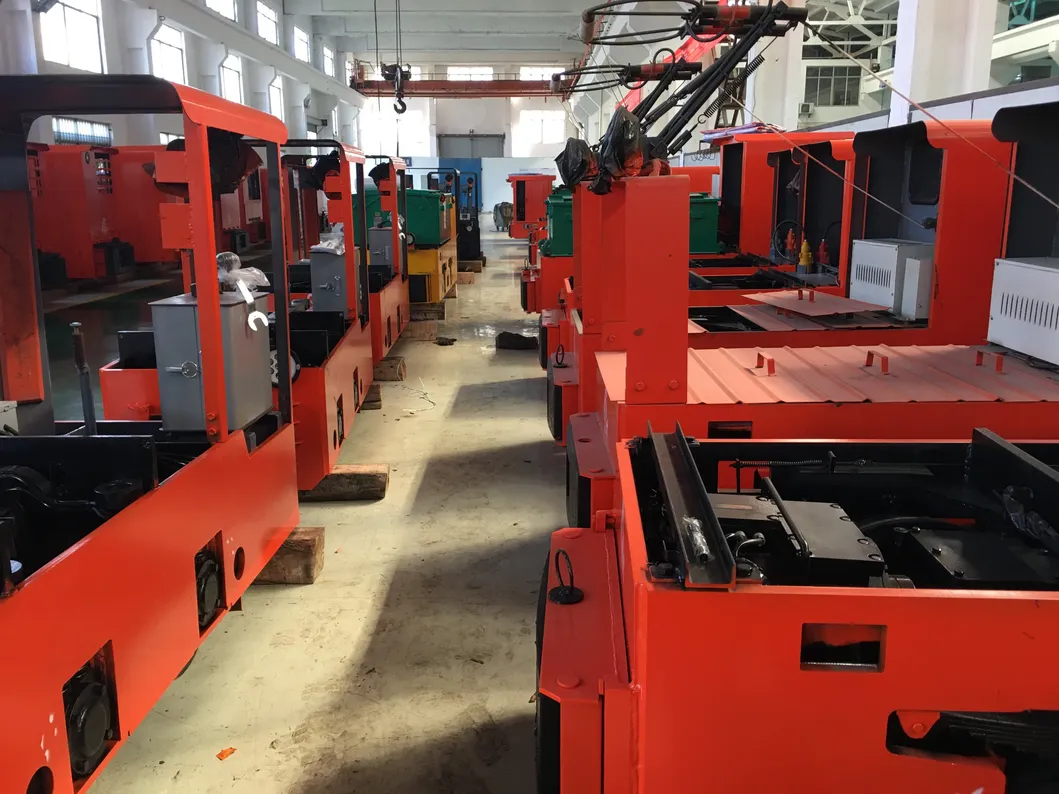

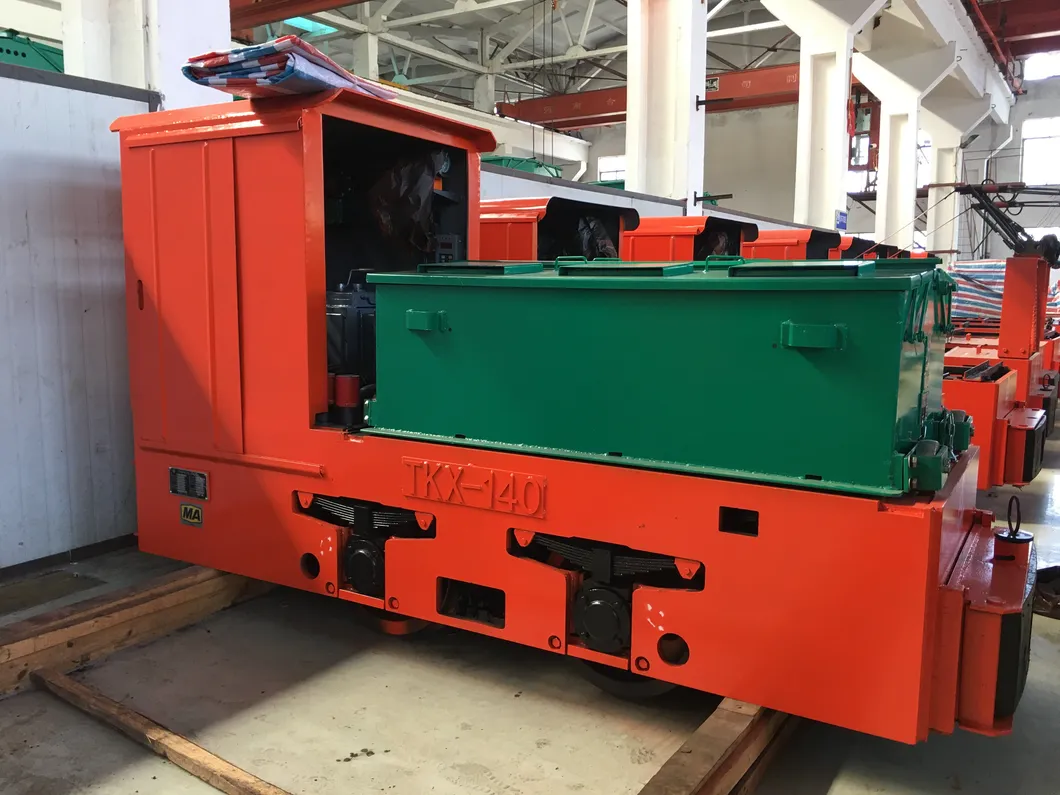

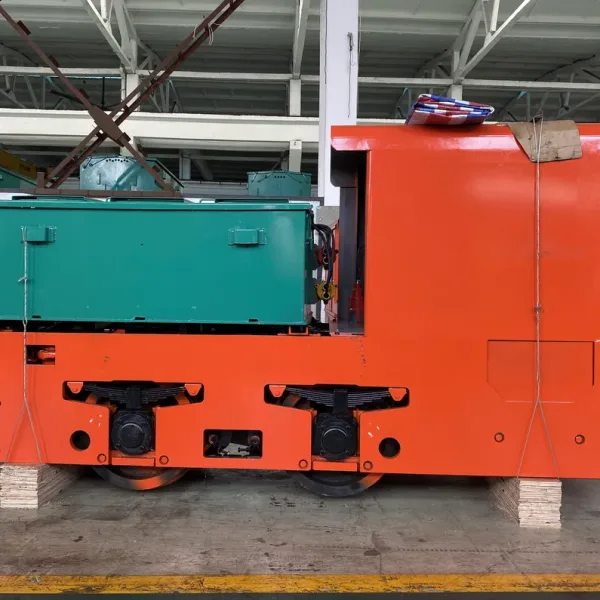

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
