Produced in China for mining contractors, beneficiation plants and equipment distributors, this drilling rig is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.
Specifications
| Max drilling depth (M) | 300 |
| Borehole diameter range (mm) | 190-800 |
| The capacity of main winch(T) | 30 |
| The capacity of vice winch(T) | 20 |
| The lifting capacity of hook(T) | 30 |
| The bearing capacity of mast (T) | 40 |
| The height of mast (M) | 10-12 |
| Drilling pipe (mm) | ะค89 |
| Max discharge pressure (Mpa) | 2 |
| Other Options | Semi trailer or customer own support vehicle/structure |
| Weight (kg) | 22340 |
| Transport size(L*W*H)(mm) | 12500*2480*3900 |
Capacity & Drive
Rated performance is given as the capacity of main winch(t) of 30. Nameplate capacity assumes a defined feed size and bulk density. Ask for the curve rather than the single number if the plant has to hold a product-size specification.
Dimensions & Packing
Dimensions and shipping data are stated as borehole diameter range (mm) of 190-800. For heavy units the packing format is part of the quote: skid, crate or container loading changes both the freight cost and the unloading equipment required on site.
Customisation & OEM Service
OEM production covers the nameplate, the paint scheme and the electrical configuration, plus frame modifications within the limits of the existing pattern. A drawing review normally comes back with the quotation. For this item, minimum order quantity is 1 Set and the reference price starts at US$50,000.00-80,000.00 per set.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.

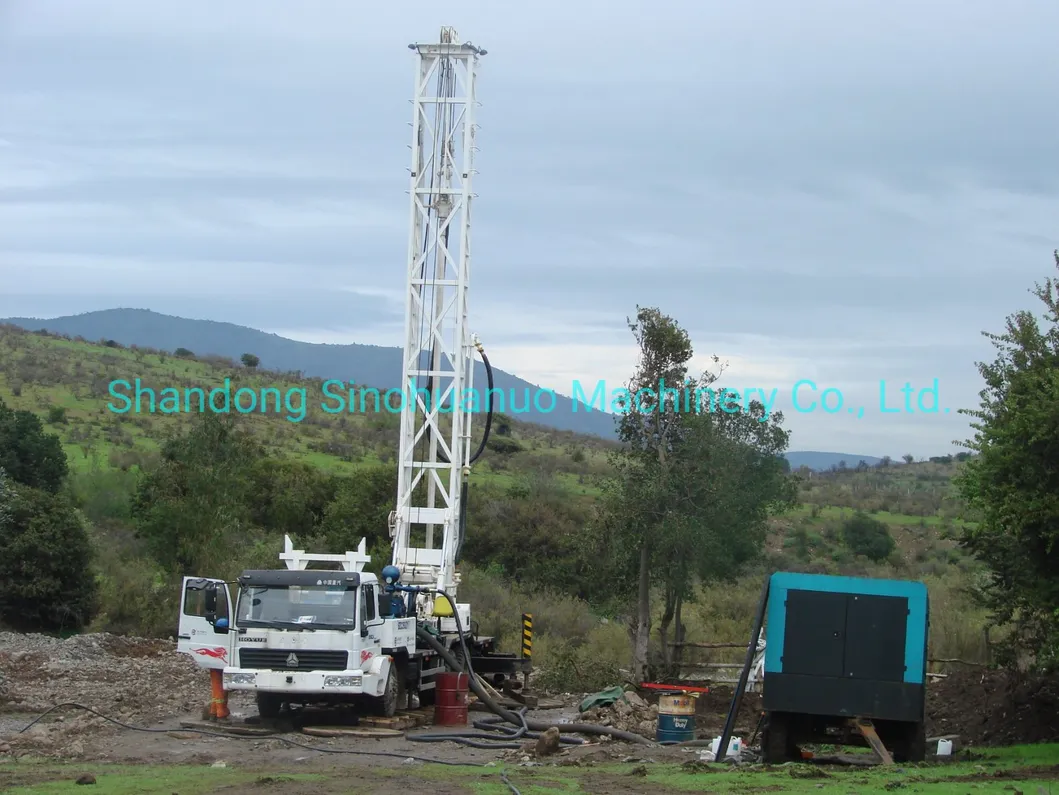

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
