This machine is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Performance | 12VDC |
| Single line rated pull | 12000lb ( 5443kg ) |
| Motor | 6.0hp/4.5kw,Series Wound |
| Control | Remote switch,12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear reduction ratio | 265.2:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum size | Diameter 2.52"±( 64mm ) Length 8.82"±( 224mm ) |
| Cable | 88ft of 3/8"± diameter ( 27m of 9.5mm diameter) |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(1.83m) |
| NW/GW | 43kg / 47kg |
Capacity & Drive
Rated performance is given as motor rated at 6.0hp/4.5kw,Series Wound. Those figures are quoted against a stated feed material and moisture content, so a site with harder rock or a wetter feed should expect a lower effective throughput than the nominal number.
Dimensions & Packing
Dimensions and shipping data are stated as drum size of Diameter 2.52"±( 64mm ) Length 8.82"±( 224mm ). Overall dimensions and unit weight decide the transport class, the lifting points and whether the machine ships as a whole unit or in modules for site assembly — worth fixing before freight is quoted.
Customisation & OEM Service
Options include wear-liner grade, drive type and the guards and chute work around the discharge. Share the installation conditions and a feasibility answer is returned with the price. For this item, minimum order quantity is 50 Pieces and the reference price starts at US$186.00-238.00 per set.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.

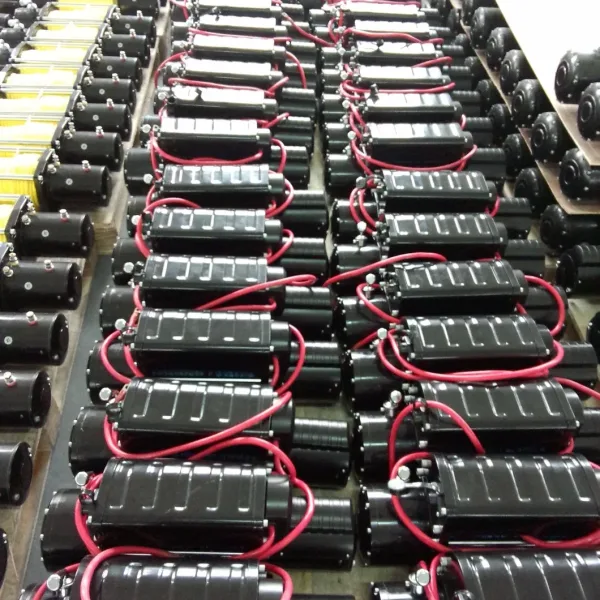

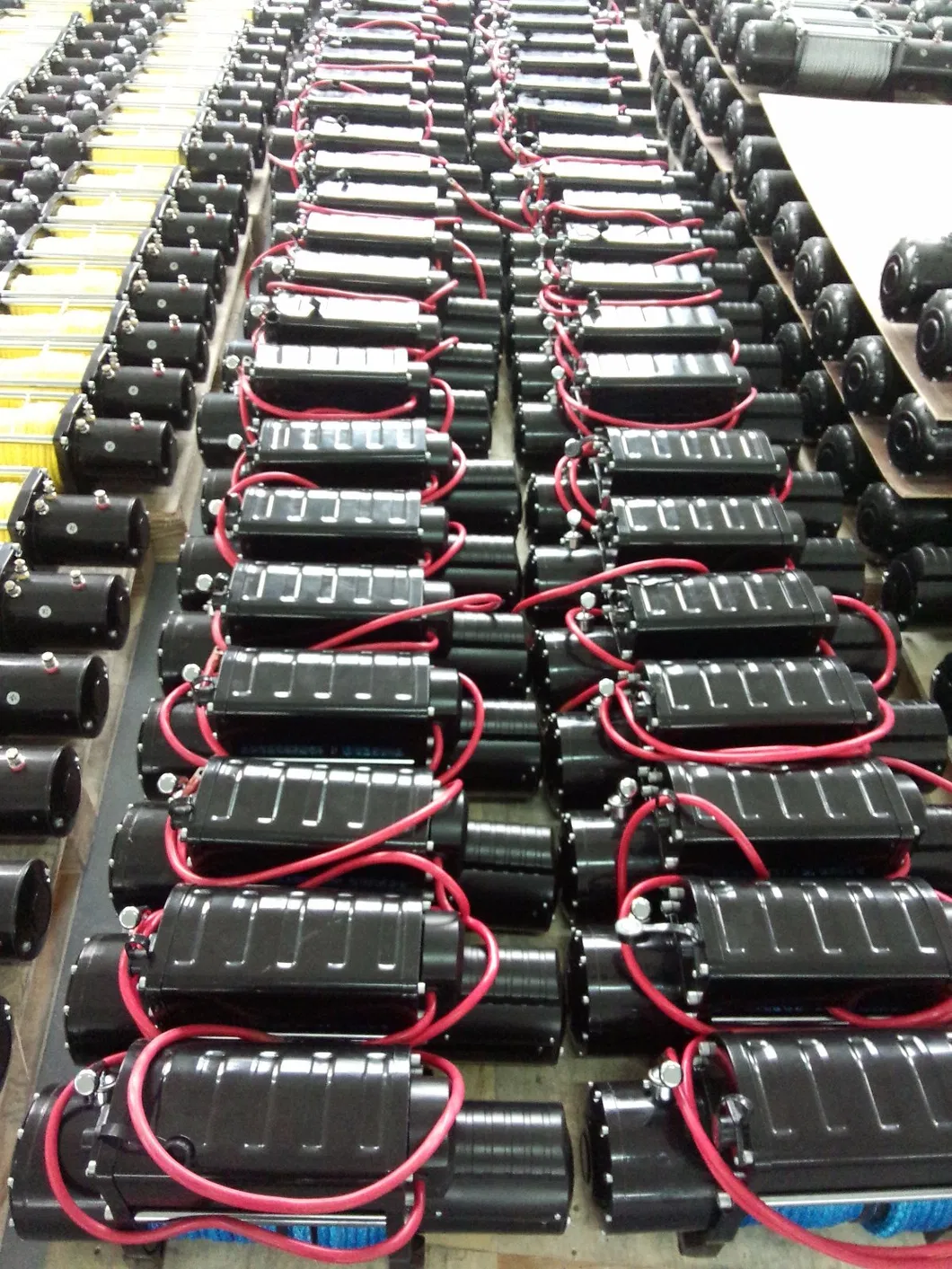

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
