Produced in China for mining contractors, beneficiation plants and equipment distributors, this machine is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.
Specifications
| Weight of main machine | 27 kg |
| Type of carburetor | Hand needle valve, no floating type |
| Ignition system | Controllable silicon contactless system |
| Displacement of engine piston | 185 cm3 |
| Rotating speed of engine | ≥2450 r/min |
| Rotating speed of drill rod | ≥200 r/min |
| End of drill rod dimensions | Hexagonal 22x108 mm |
| Max drilling depth | 6 m |
| Tank capacity | 1.14 L |
| Drilling speed | ≥250mm/min |
| Clearance of spark plug | 0.5--0.7 mm |
Capacity & Drive
Rated performance is given as tank capacity of 1.14 L and displacement of engine piston rated at 185 cm3. Nameplate capacity assumes a defined feed size and bulk density. Ask for the curve rather than the single number if the plant has to hold a product-size specification.
Dimensions & Packing

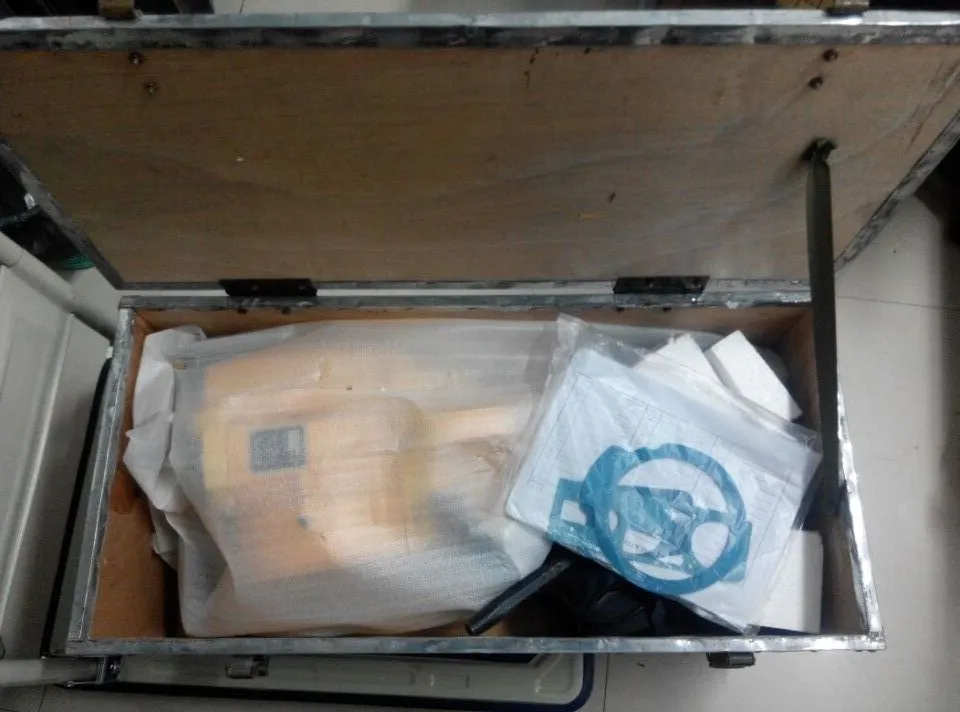

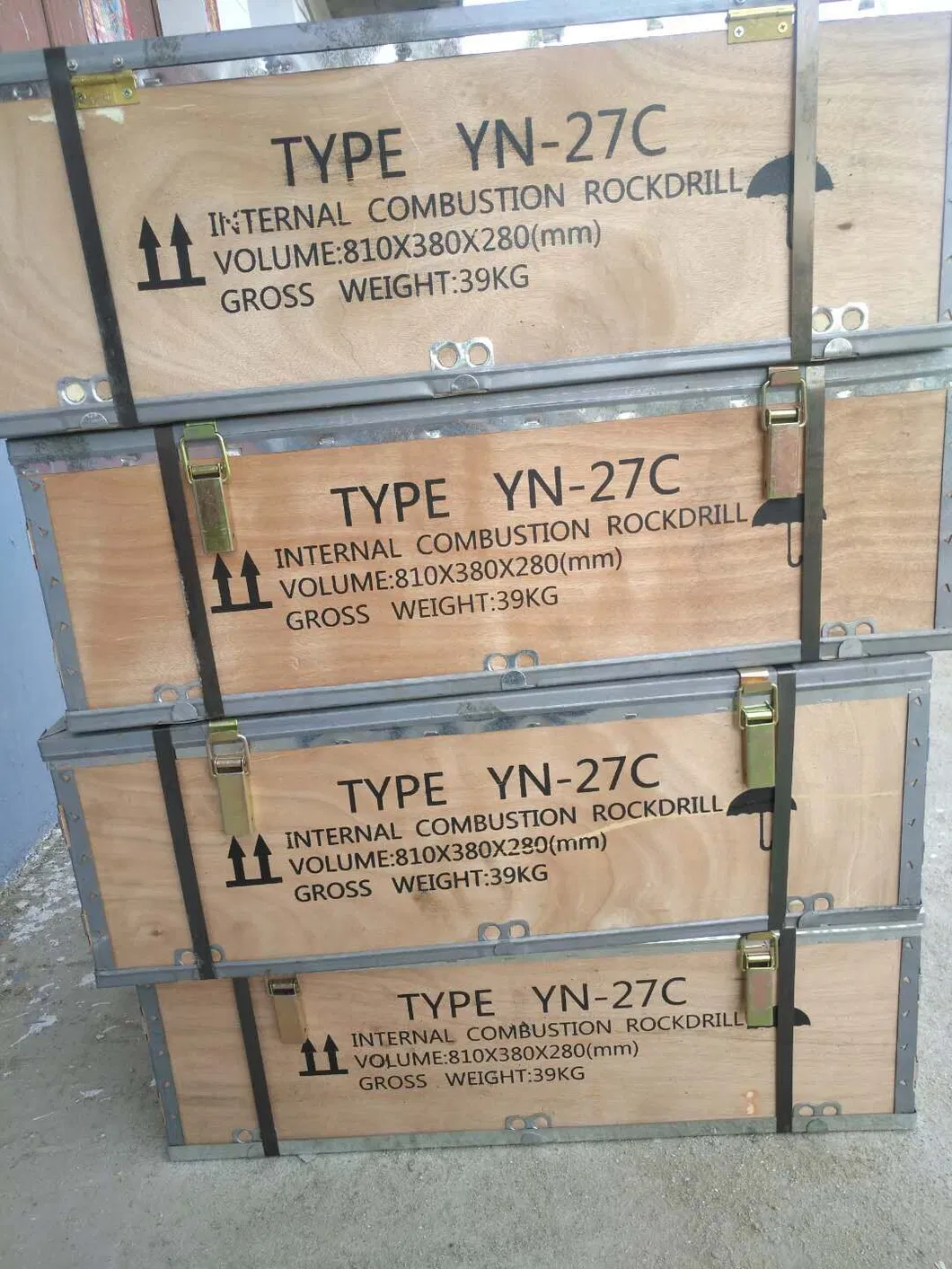

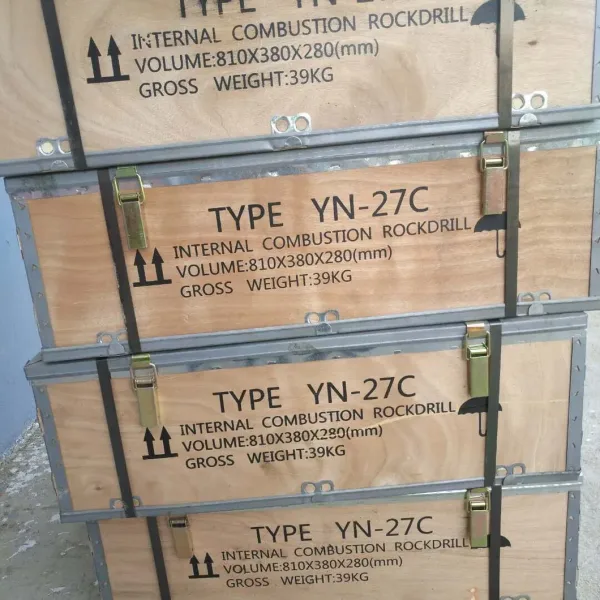

Dimensions and shipping data are stated as weight of main machine of 27 kg. For heavy units the packing format is part of the quote: skid, crate or container loading changes both the freight cost and the unloading equipment required on site.
Customisation & OEM Service
Options include wear-liner grade, drive type and the guards and chute work around the discharge. Share the installation conditions and a feasibility answer is returned with the price. For this item, minimum order quantity is 1 Set and the reference price starts at US$270.00-280.00 per set.
Ordering & Samples
For equipment of this size the usual path is a drawing review, then a factory acceptance check before shipment. Lead time and freight are quoted against the confirmed configuration and the destination port.

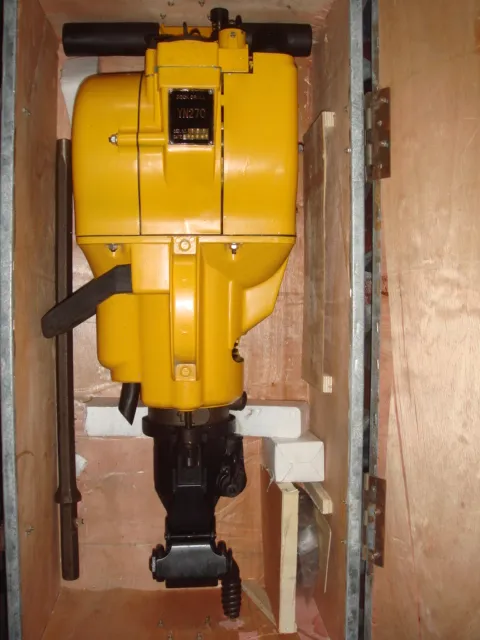

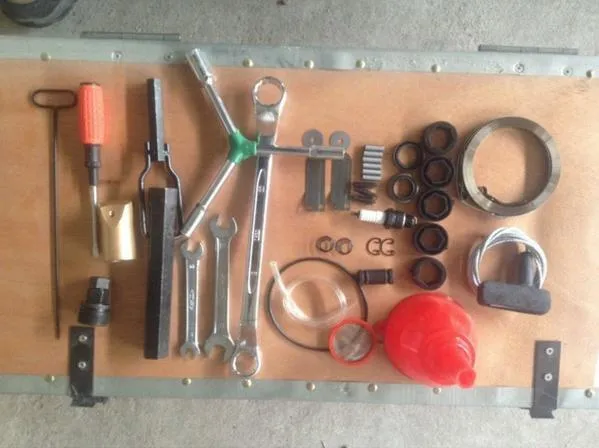

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
