This drilling rig is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Main parameter | Parameter values |
| Size | 11000*2050*2800/3650mm |
| Maximum excavation height | 7200mm |
| Drilling diameter | φ43mm-φ102mm |
| Drill pipe length | 4305mm |
| Drilling depth | 3900mm |
| Drilling speed | 0.8-2m/min |
| Motor power | 55KW |
| Fuel tank capacity | 250L |
| Overall weight | 12000kg |
| Rock drilling power head model | DZ600 |
| Rotation | Positive 135 ° Reverse 225 ° |
| Swing arm | 45 ° left and right |
| Travel compensation | 1600mm |
| Main arm stroke | 1300mm |
| Sliding rail swing angle | 2 ° elevation and 90 ° elevation |
| Diesel engine power | 60kw |
| Turn | ±40 |
| Tires | 9.00-20 |
| Climbing ability | ≤15° |
| Rear axle swing angle | ±10° |
| Approach angle/departure angle | 17°/14° |
| Inside turning radius | Inner side 3.3m/outer side 6.95m |
| Walking speed | 12km/h |
| Ground clearance | 350mm |
| Air compressor flow rate | 0.55m³/min |
| Pressure | 0.3-0.6MPa |
| Air compressor motor power | 4KW |
| Water pump flow rate | 5m³/h |
| Pump motor power | 3kw |
| Battery rate | 2x12v |
| Driving lighting | 24v |
| Work lighting | 220v |
Capacity & Drive
Rated performance is given as fuel tank capacity of 250L and drilling speed rated at 0.8-2m/min. Throughput is normally quoted for a reference feed gradation. Hardness, moisture and the target product size all move the real figure, which is why the duty cycle is worth stating up front.
Dimensions & Packing
Dimensions and shipping data are stated as size of 11000*2050*2800/3650mm. Shipping weight and footprint drive container or flat-rack loading and the crane capacity needed at the destination, so both are normally confirmed together with the packing list.
Customisation & OEM Service
OEM production covers the nameplate, the paint scheme and the electrical configuration, plus frame modifications within the limits of the existing pattern. A drawing review normally comes back with the quotation. For this item, minimum order quantity is 1 Piece and the reference price starts at US$99,000.00-175,000.00 per set.
Ordering & Samples
Ordering starts with the duty specification and a layout drawing, followed by a proforma against the confirmed configuration. Delivery schedules are quoted per order rather than published on the page.

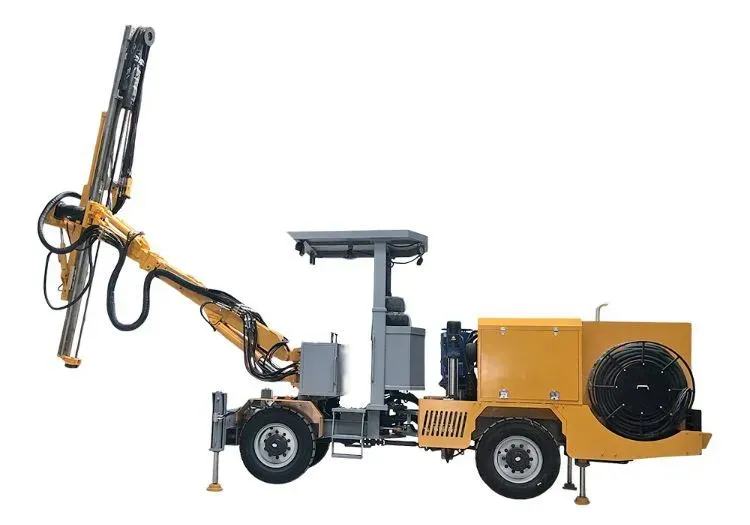

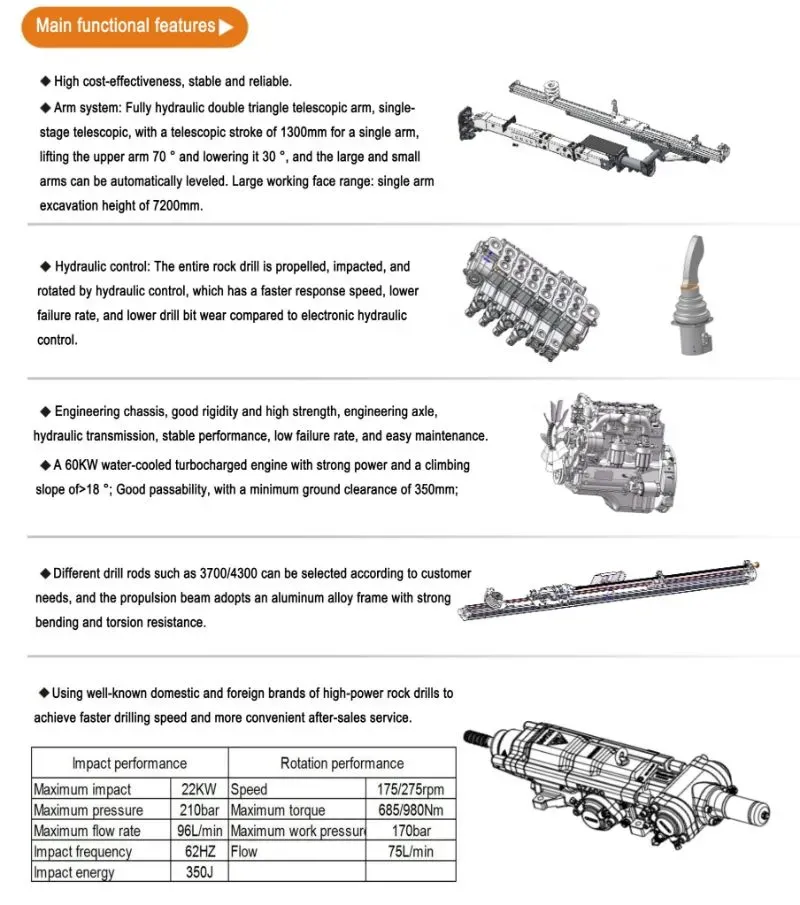

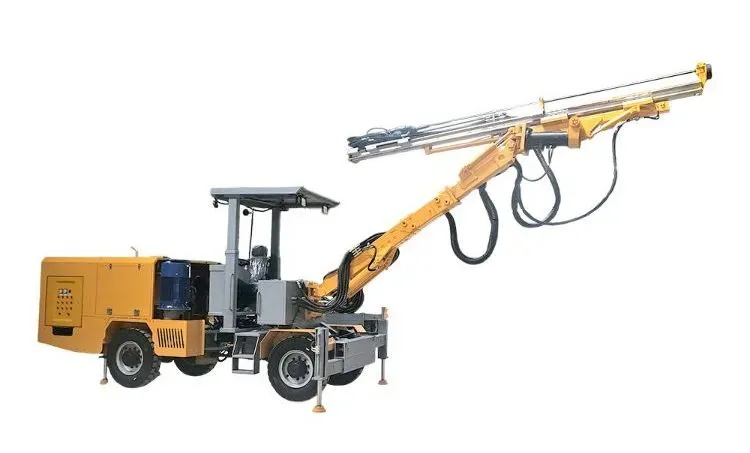

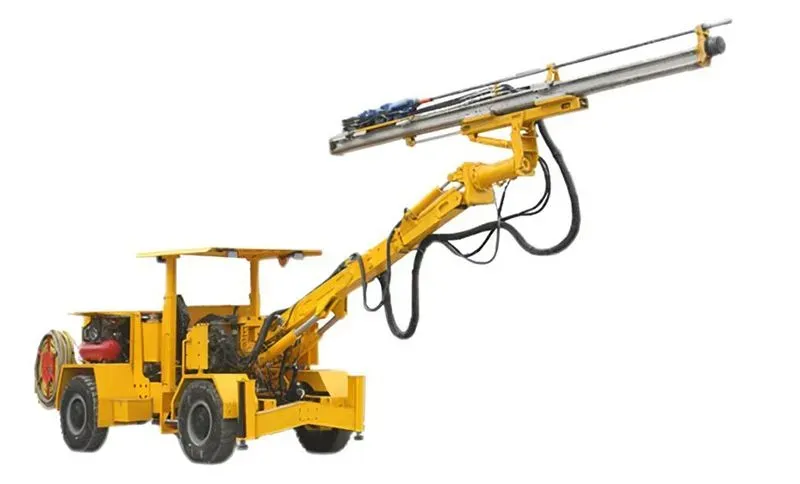

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
