This machine is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Engine | Engine: Deutz BF6L914air-cooled engine Rated power/rated speed: 112 kW/2300 r/min Maximum output torque: 550 N·m@1600 r/min Starting method: Electric start Exhaust gas purification method: equipped with DOC+POC exhaust gas purification device Throttle control: Williams hydraulic throttle controller |
| Braking system | Brake pump displacement:16ml/r Maximum pressure of braking system: 16 MPa Service brake: wet multi disc spring brake Parking brake: Spring Applied hydraulic release SAHR brake |
| Working System | Working directional valve: SDS180/1 Lifting cylinder diameter/rod diameter x number of cylinders: φ160/ φ70mm x 2 Maximum working system pressure: 16MPa |
| Electrical system | System voltage: 24V DC Starting motor voltage/power: 24V/6kW Lighting: 4 front headlights, 2 x 48W, 24V rear headlights, 2 x 48W,24V 2 side headlights, 6 x 36W, 24V mining signal lights 2, 24V 1 cab overhead light, 24V |
| Fuel tank capacity | Hydraulic oil tank (not less than): 130L Fuel tank (not less than): 160L Transmission: 28L Main transmission part of drive axle: 17L x2 Drive axle wheel side deceleration part: 3.5Lx4 Engine lubricating oil: 28L |
Customisation & OEM Service
OEM production covers the nameplate, the paint scheme and the electrical configuration, plus frame modifications within the limits of the existing pattern. A drawing review normally comes back with the quotation. For this item, minimum order quantity is 1 unit and the reference price starts at US$108,000.00-120,000.00 per set.
Ordering & Samples
For equipment of this size the usual path is a drawing review, then a factory acceptance check before shipment. Lead time and freight are quoted against the confirmed configuration and the destination port.

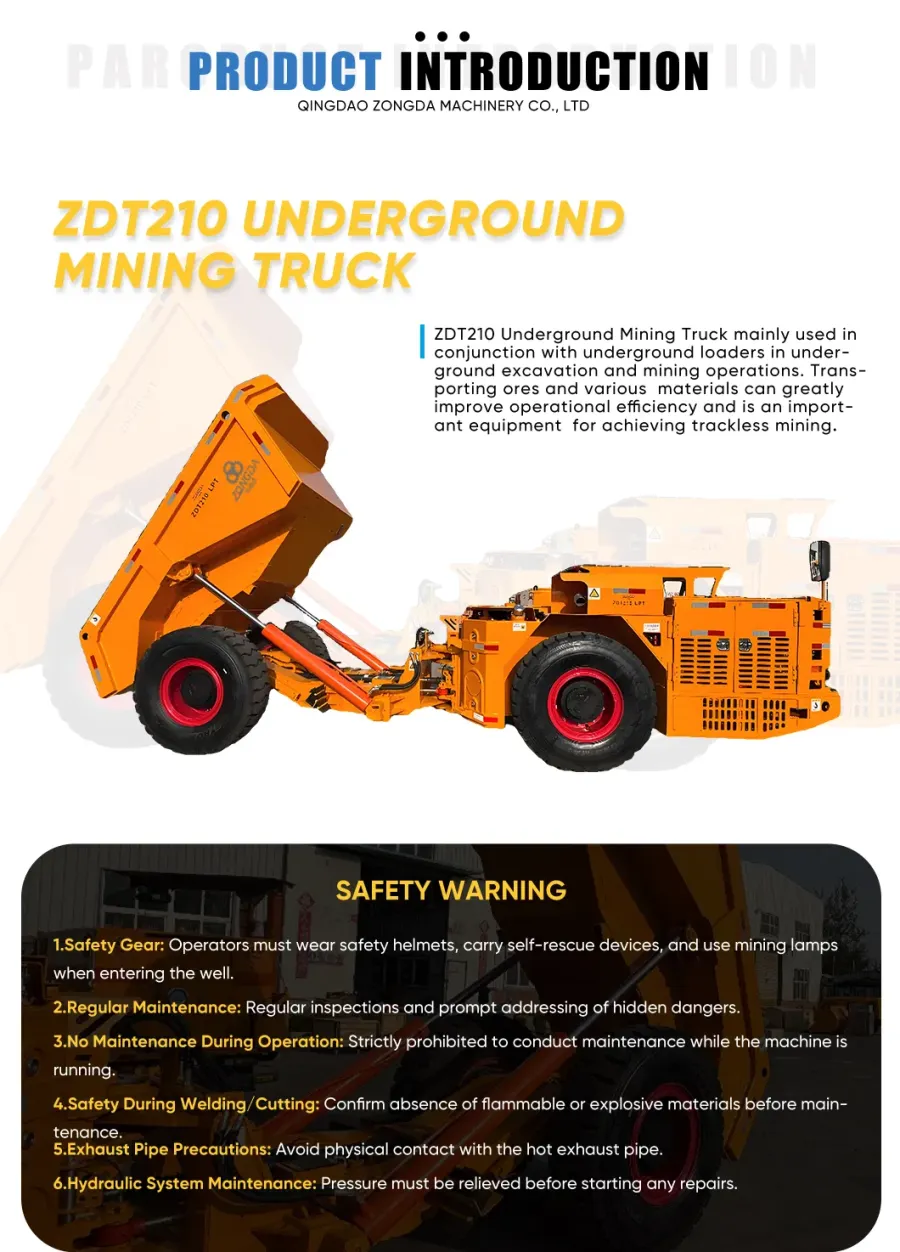

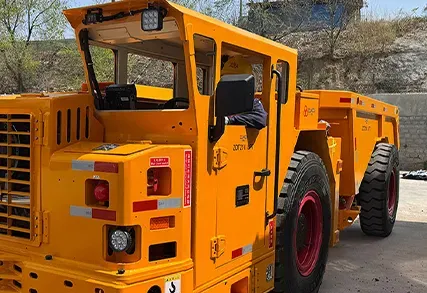

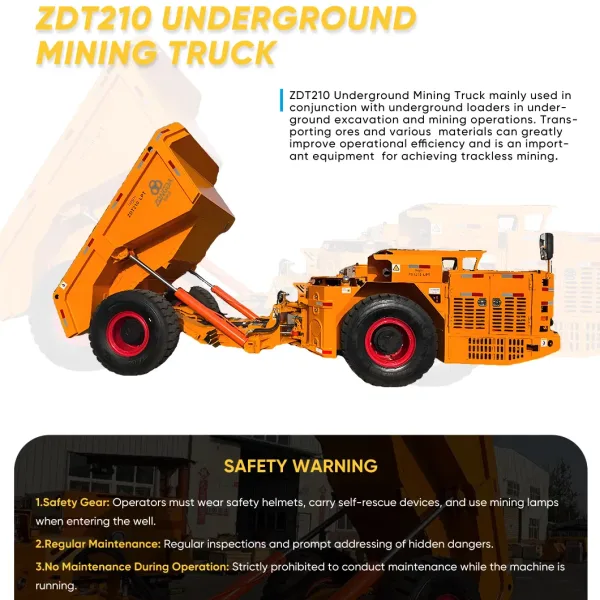

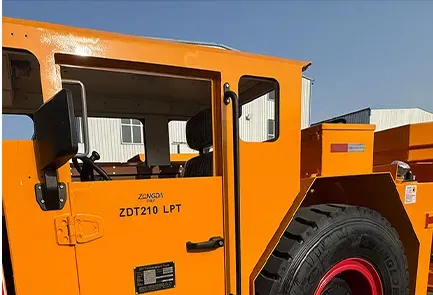

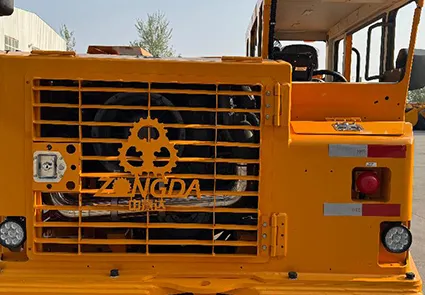

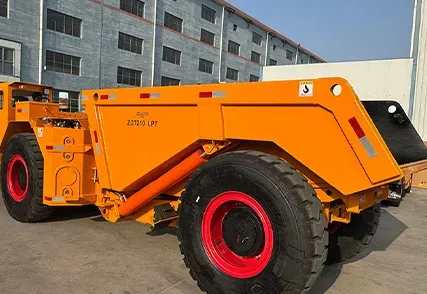

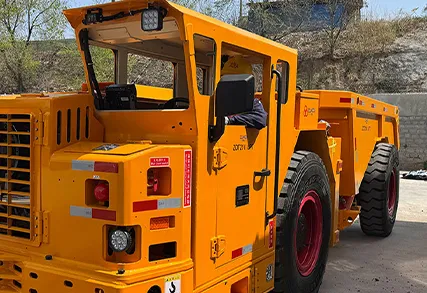

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
