This machine is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Model | TCD-20 |
| Piston diameter | 42.85 mm |
| Piston stroke | 60 mm |
| Percussive frequency | 2000 B.P.M |
| Weight | 10 kg |
| Length | 520 mm |
| Air Consumption | 1.1 m3/min |
| Air tube size | 19 mm |
| Bit head size | 26*80 mm |
| Air inlet size | 3/4 P/T |
| Bad lubricate | Do use standard oil |
| Water intake | Water pressure is higher than air pressure damage lubrication. Lower water pressure immediately. |
| Mostly parts out of use | Change parts at once |
Capacity & Drive
Rated performance is given as air inlet size of 3/4 P/T and percussive frequency rated at 2000 B.P.M. Throughput is normally quoted for a reference feed gradation. Hardness, moisture and the target product size all move the real figure, which is why the duty cycle is worth stating up front.
Dimensions & Packing
Dimensions and shipping data are stated as model of TCD-20. Shipping weight and footprint drive container or flat-rack loading and the crane capacity needed at the destination, so both are normally confirmed together with the packing list.
Customisation & OEM Service
OEM production covers the nameplate, the paint scheme and the electrical configuration, plus frame modifications within the limits of the existing pattern. A drawing review normally comes back with the quotation. For this item, minimum order quantity is 1 Set and the reference price starts at US$170.00-180.00 per set.
Ordering & Samples
Ordering starts with the duty specification and a layout drawing, followed by a proforma against the confirmed configuration. Delivery schedules are quoted per order rather than published on the page.

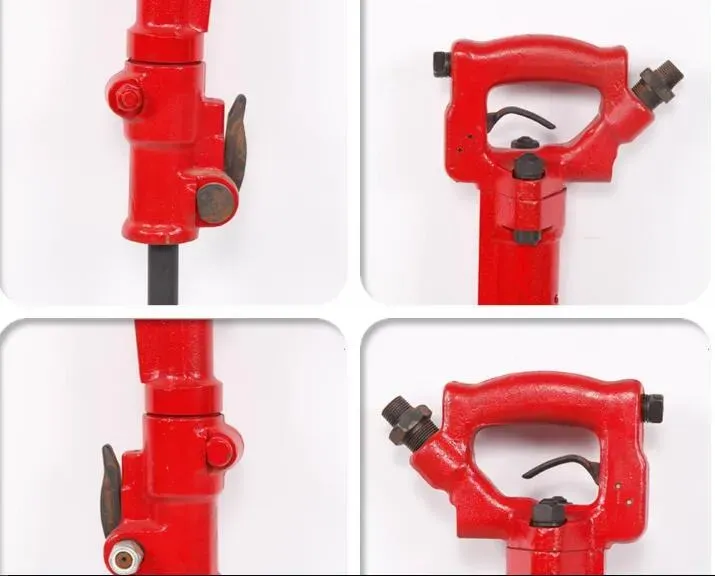

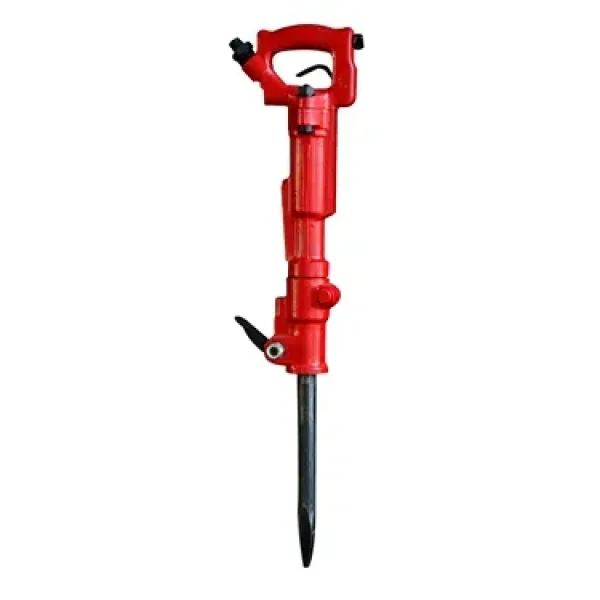

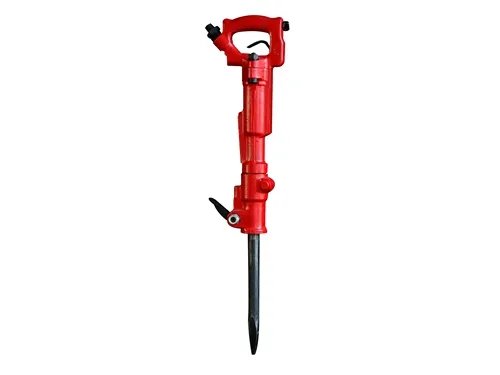

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
