Produced in China for mining contractors, beneficiation plants and equipment distributors, this mining locomotive is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.
Specifications
| Model Name | CTY2.5/4,6,7,9G(B) |
| Adhesive Weight | 2.5 tons |
| Track Gauge | 457,600,762 or 900mm ( according to requirements) |
| Hourly System Traction | 2.55kN |
| Max. Traction | 6.13kN |
| Hourly System Speed | 4.54km/h |
| Supply Voltage | 48V |
| Capacity of Traction Battery | 308 or 330 Ah ( 5 hours capacity) |
| Power of Electric Motor | 3.5kW*1 |
| Length | 2360mm |
| Width | 914, 1076 or 1214mm |
| Height | 1550mm |
| Wheelbase | 650mm |
| Wheel Diameter | Φ460mm |
| Height of Traction | 320mm |
| Min. Turning Radius | 5m |
| Speed Regulating Mode | Resistance or IGBT |
| Braking Mode | Mechanical Brake |
Capacity & Drive
Rated performance is given as capacity of traction battery of 308 or 330 Ah ( 5 hours capacity) and hourly system speed rated at 4.54km/h. Those figures are quoted against a stated feed material and moisture content, so a site with harder rock or a wetter feed should expect a lower effective throughput than the nominal number.
Dimensions & Packing
Dimensions and shipping data are stated as model name of CTY2.5/4,6,7,9G(B). Overall dimensions and unit weight decide the transport class, the lifting points and whether the machine ships as a whole unit or in modules for site assembly — worth fixing before freight is quoted.
Customisation & OEM Service
The unit can be built to your duty: alternative wear material, a different motor voltage or drive arrangement, and a modified discharge setting can all be quoted against your specification. Send the feed material, target output and site power supply and the factory will confirm what is feasible on this frame size. For this item, minimum order quantity is 1 Piece.
Ordering & Samples
Ordering starts with the duty specification and a layout drawing, followed by a proforma against the confirmed configuration. Delivery schedules are quoted per order rather than published on the page.

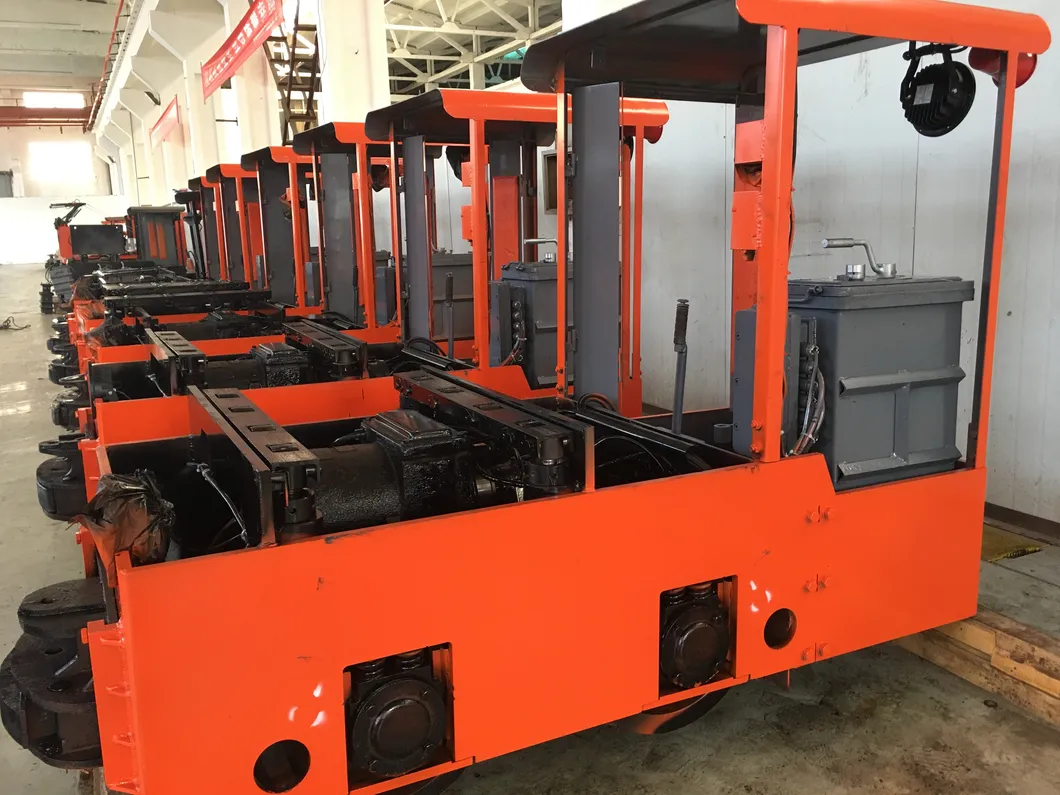

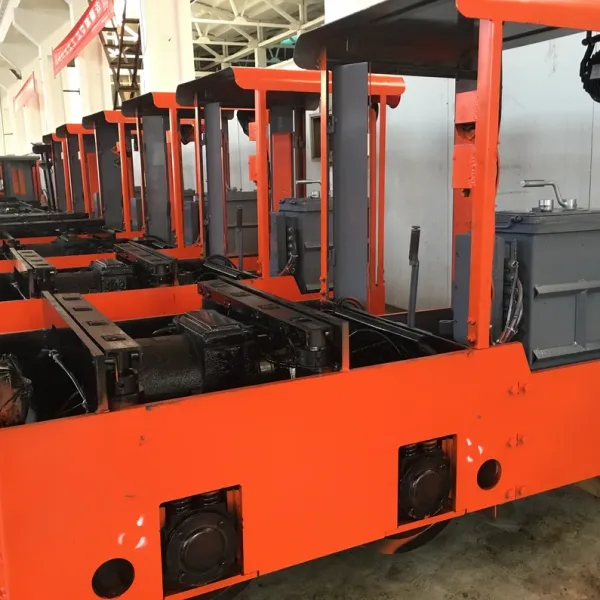

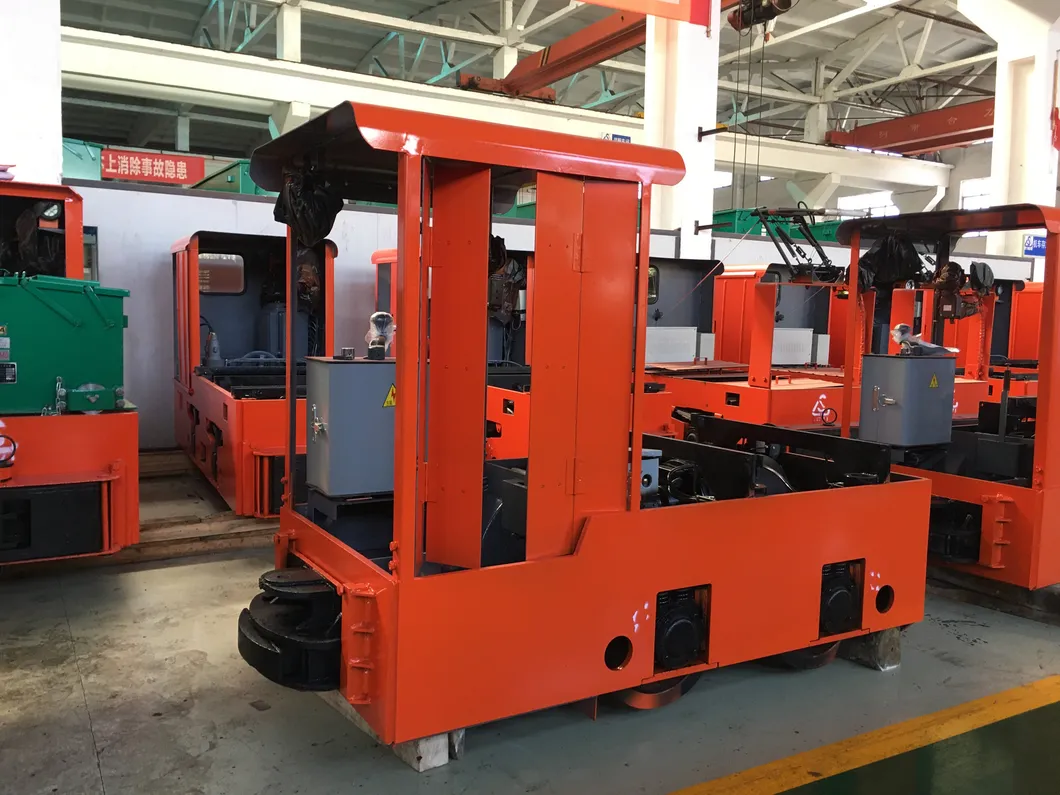

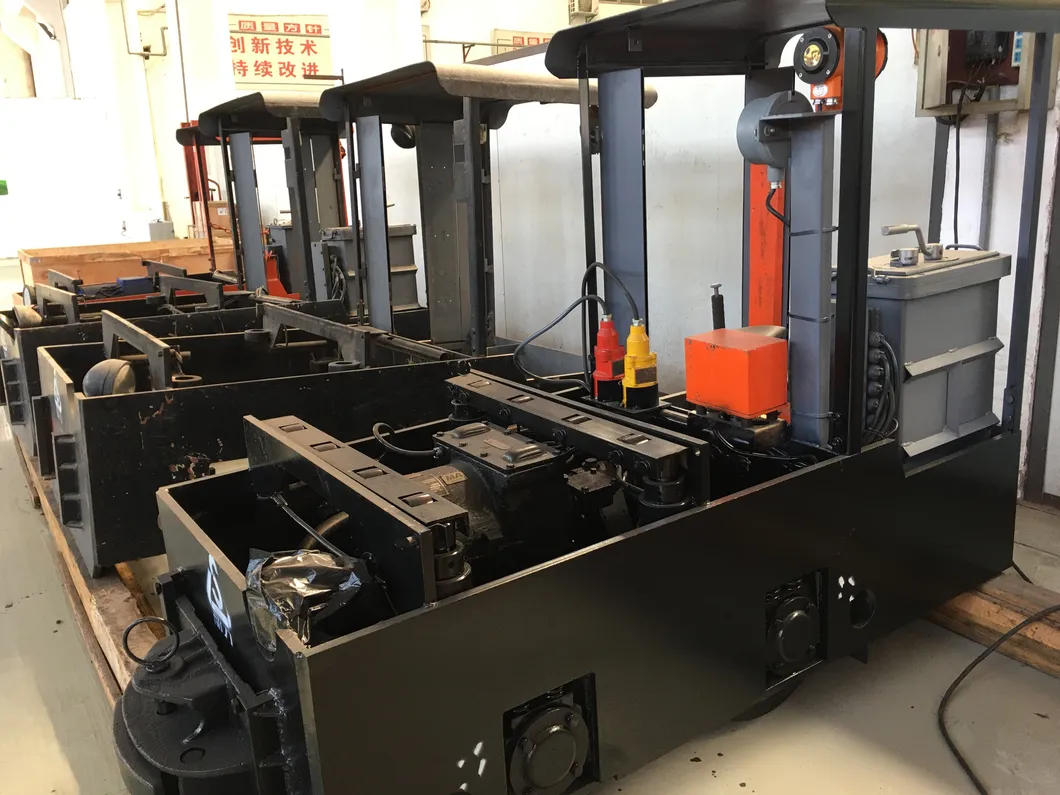

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
