This drilling rig is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.

Specifications

Max. Drilling Depth	200m
Drilling Hole Dia.	90-315mm
Working Pressure	1.7-3.0Mpa
Air Consumption	17-35m3/min
Drill Pipe Length	3m
Drill Pipe Dia.	76mm/89mm
Axial Pressure	4T
Lifting Force	14T
Lifting Speed	2.5m/min
Push Speed	0.5-5m/min
Fast lifting Speed	35m/min
Max.Rotation Torque	4500-6500Nm
Rotation Speed	50-70r/min
Working Hoist Lifting Force	1.5T
Mud Pump Flow Rate	20L/min (optional)
High Pressure Hydraulic Legs Stroke	1.5m
Drilling Efficiency	10-35m/h
Travel Speed	2Km/h
Grade ability	30°
Weight	5.4T
Dimension	3.9x1.7x2.15m
Diesel Engine	77KW(Yuchai )
Application formation	loose layer or bedding rock
Drilling Method	Top Hammer Hydraulic Rotating and feeding,

Product Highlights

The item is described with these characteristics:

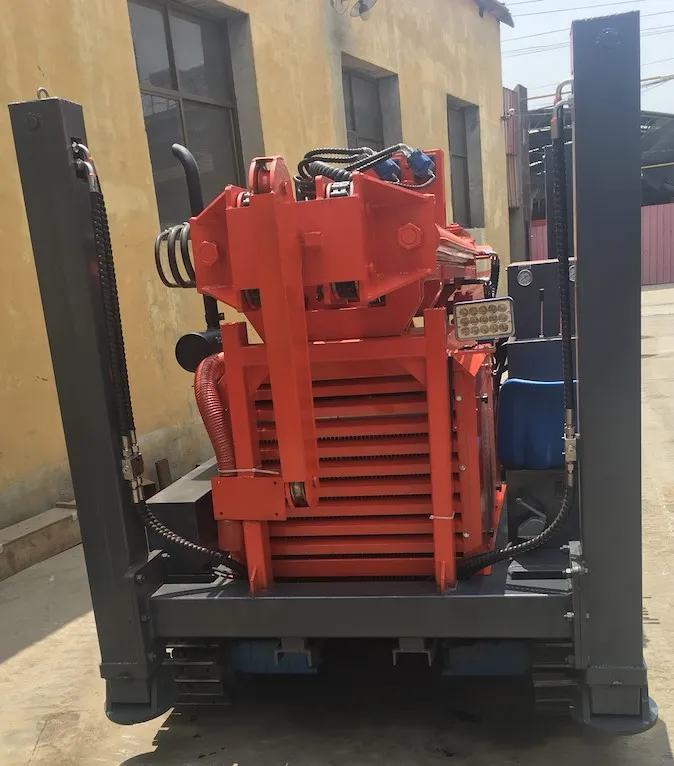

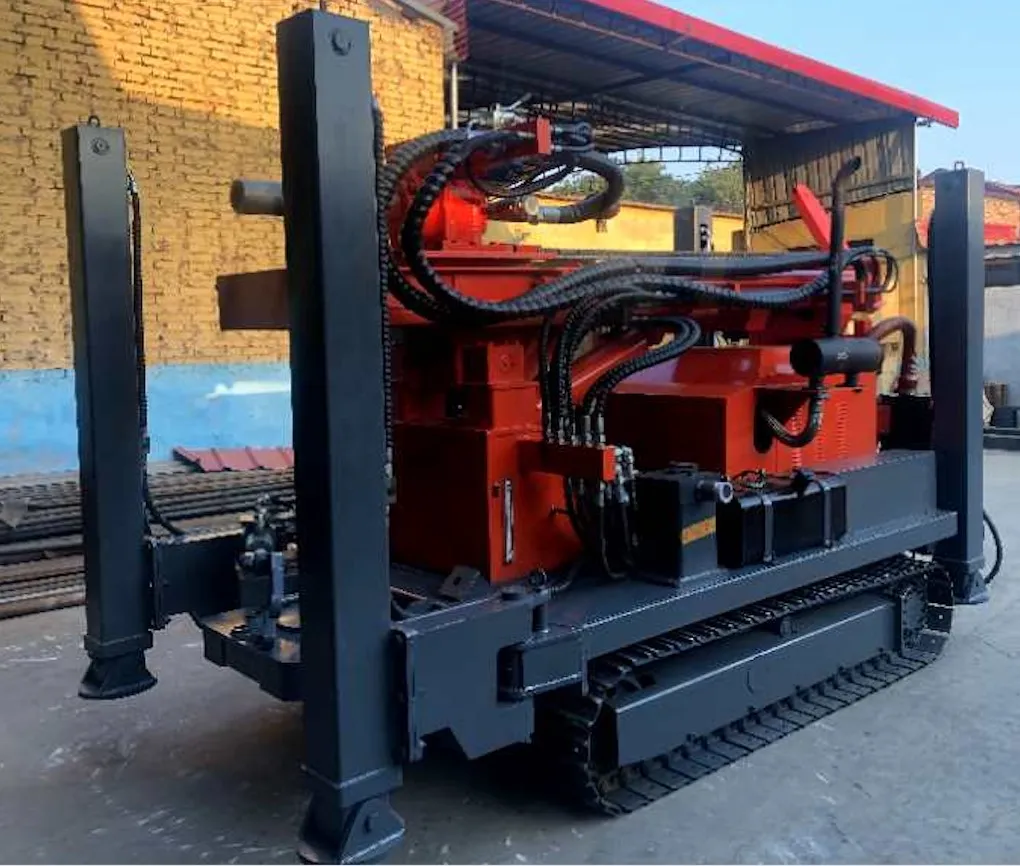

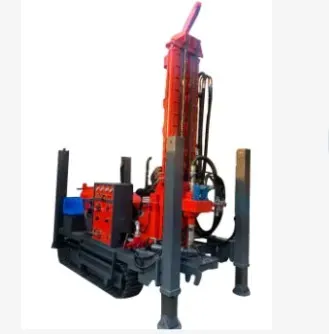

GL200S Crawler Type Water Well Drilling Rig

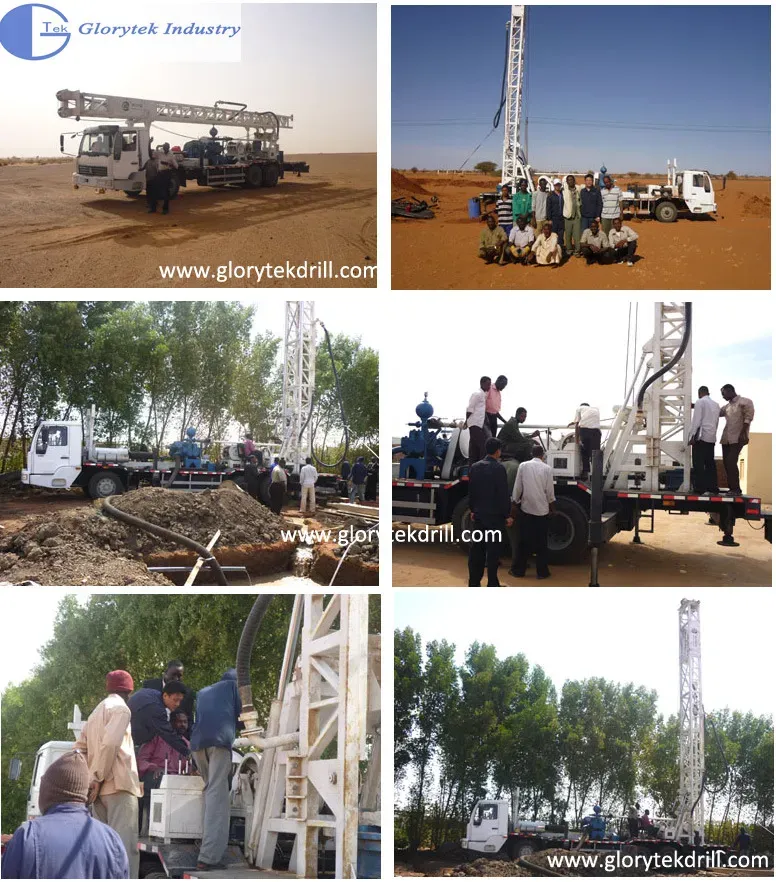

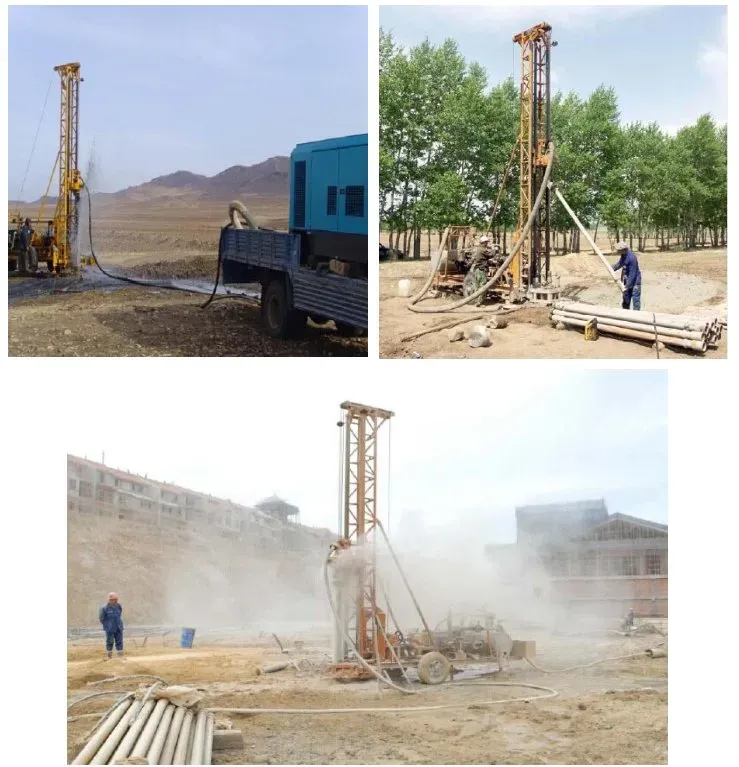

Detailed Photos
After Sales Service
Related product

Material & Construction

The grade ability is stated as 30°. The grade matters more than the headline tonnage on abrasive feed: it decides relining intervals and therefore the real cost per tonne over the life of the machine.

Capacity & Drive

Rated performance is given as drilling efficiency of 10-35m/h and lifting speed rated at 2.5m/min. Throughput is normally quoted for a reference feed gradation. Hardness, moisture and the target product size all move the real figure, which is why the duty cycle is worth stating up front.

Dimensions & Packing

Dimensions and shipping data are stated as drill pipe length of 3m. Shipping weight and footprint drive container or flat-rack loading and the crane capacity needed at the destination, so both are normally confirmed together with the packing list.

Customisation & OEM Service

OEM production covers the nameplate, the paint scheme and the electrical configuration, plus frame modifications within the limits of the existing pattern. A drawing review normally comes back with the quotation. For this item, minimum order quantity is 1 set and the reference price starts at US$20,000.00 per set.

Ordering & Samples

Ordering starts with the duty specification and a layout drawing, followed by a proforma against the confirmed configuration. Delivery schedules are quoted per order rather than published on the page.
