Produced in China for mining contractors, beneficiation plants and equipment distributors, this drilling rig is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.
Specifications
| Max drilling depth | 400m |
| Drilling diameter | 105-350mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102/114mm |
| Main shaft pressure | 6T |
| Lifting force | 28T |
| Fast lifting speed | 24m/min |
| Fast forwarding speed | 50m/min |
| Rotary torque | 10000 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 3T |
| High leg stroke | 1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 9.2T |
| Dimension | 5.4m x 1.7m x 2.35m |
| Working condition | loose layer or bedding rock |
| Drilling method | Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 90KW-6 Cylinders |
Product Highlights
The item is described with these characteristics:

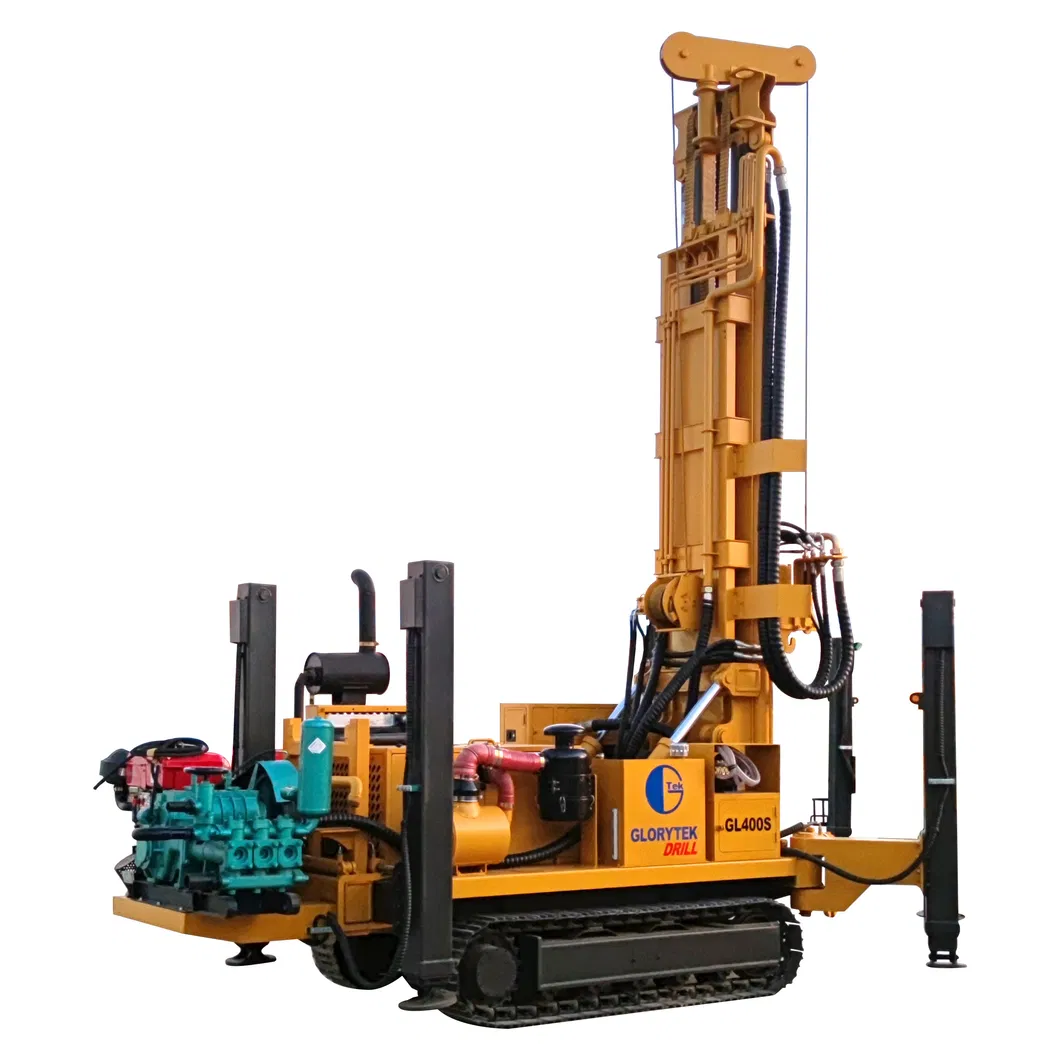

- GL400S 400M Crawler Water Well Borehole Drilling Rig
- Technical Parameter
- Max drilling depth
- Drilling diameter
- Air consumption
- 76/89/102/114mm
Capacity & Drive
Rated performance is given as drilling efficiency of 10-35m/h and fast lifting speed rated at 24m/min. Those figures are quoted against a stated feed material and moisture content, so a site with harder rock or a wetter feed should expect a lower effective throughput than the nominal number.
Dimensions & Packing
Dimensions and shipping data are stated as drilling diameter of 105-350mm. Overall dimensions and unit weight decide the transport class, the lifting points and whether the machine ships as a whole unit or in modules for site assembly — worth fixing before freight is quoted.
Customisation & OEM Service
The unit can be built to your duty: alternative wear material, a different motor voltage or drive arrangement, and a modified discharge setting can all be quoted against your specification. Send the feed material, target output and site power supply and the factory will confirm what is feasible on this frame size. For this item, minimum order quantity is 1 Set and the reference price starts at US$65,000.00 per set.
Ordering & Samples
For equipment of this size the usual path is a drawing review, then a factory acceptance check before shipment. Lead time and freight are quoted against the confirmed configuration and the destination port.
Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
