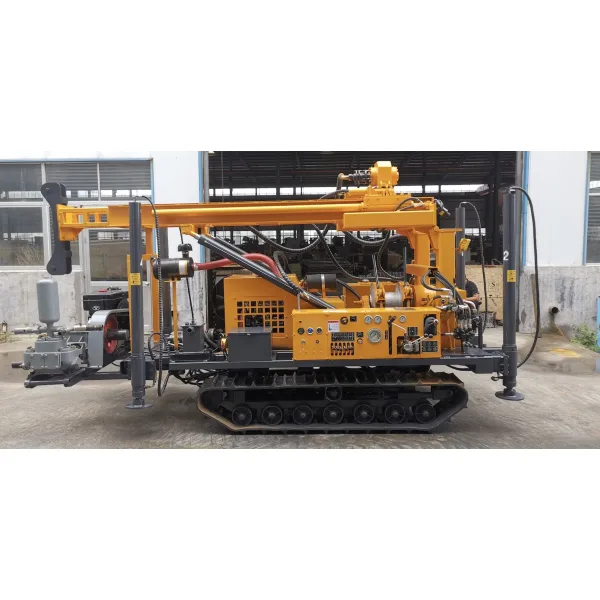

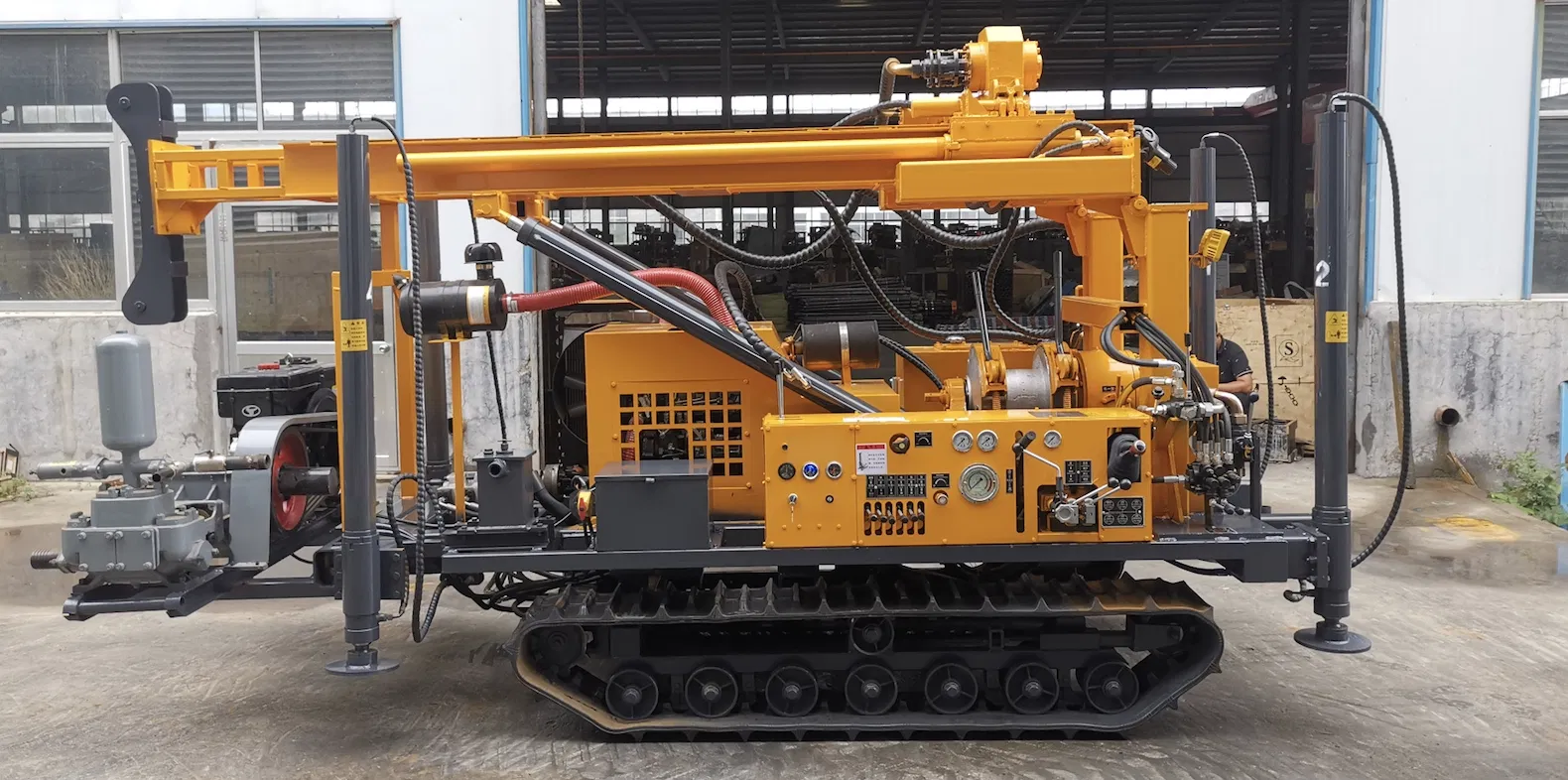

Produced in China for mining contractors, beneficiation plants and equipment distributors, this drilling rig is summarised below by construction, capacity and drive, followed by the commercial terms a buyer normally asks about first.
Specifications
| Wireline coring NQ size | 300m |
| Borehole (Drill bit) dia. | Ø75-Ø220mm |
| Drilling angle | 90° |
| Thrusting capacity | 50KN |
| Rotary speed RPM | Forward: 33,63,113,162,192/ 237,303,537,906,1120 r/min |
| Max. torque | 9800N.m |
| Rated power/speed | 42KW (58KW Optional)/ (2400r/min) |
| Mechanical winch capacity | 4.5 Ton |
| Drill pipe length | 2000mm |
| Mud pump(optional) | BW160/ BW200/ BW250 |
| Climbing angle | Max. 25°~30° |
| High leg stoke | 1.5M |
| Working | 3480*1600*5550mm |
| Weight with rubber crawler | 4200kg |
| Weight with steel crawler | 5200kg |
Material & Construction
The weight with rubber crawler is stated as 4200kg. Material grade drives how long the liners and plates survive in abrasive duty, and it is the first thing to pin down when comparing quotes — two units at the same price can differ by a full liner set.
Capacity & Drive
Rated performance is given as thrusting capacity of 50KN and rotary speed rpm rated at Forward: 33,63,113,162,192/ 237,303,537,906,1120 r/min. Nameplate capacity assumes a defined feed size and bulk density. Ask for the curve rather than the single number if the plant has to hold a product-size specification.
Dimensions & Packing
Dimensions and shipping data are stated as wireline coring nq size of 300m. For heavy units the packing format is part of the quote: skid, crate or container loading changes both the freight cost and the unloading equipment required on site.
Customisation & OEM Service
Options include wear-liner grade, drive type and the guards and chute work around the discharge. Share the installation conditions and a feasibility answer is returned with the price. For this item, minimum order quantity is 1 Piece and the reference price starts at US$32,000.00 per set.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.
Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
