This drilling rig is built in China for quarries, mineral processing plants and aggregate producers, and is supplied for wholesale and OEM orders. The table below lists the build, the working parameters and the packing published for the unit.
Specifications
| Hole range | φ 152-203 mm |
| Recommended DTH hammer size | 6"(Optional 7"/8") |
| Drill pipe handling capacity | 4+1 |
| Drill pipe OD | 114 mm ( Optional 102 / 127 mm ) |
| Drill pipe length | 7 m ( Optional 5 / 6 m ) |
| Maximum hole depth with Auto handling | 35 m |
| Hydraulic motor driven rotary head | 0 - 80 rpm |
| Maximum torque | 5,600 N.m |
| Capacity | 1,000 L |
| Maximum working pressure | 25 bar(362.5 psi) |
| Capacity FAD | 33 m3 / min |
| Total length | 11,500 mm |
| Travel length | 7,600 mm |
| Feed extension | 1,300 mm |
| Feeding rate | 0.9 m / s |
| Maximum feeding force | 40 kN |
| Maximum pull up force | 50 kN |
Product Highlights
The listing calls out the following points for this unit:
- ROCK DRILLING RIG
Capacity & Drive
Rated performance is given as drill pipe handling capacity of 4+1 and hydraulic motor driven rotary head rated at 0 - 80 rpm. Nameplate capacity assumes a defined feed size and bulk density. Ask for the curve rather than the single number if the plant has to hold a product-size specification.
Dimensions & Packing
Dimensions and shipping data are stated as recommended dth hammer size of 6"(Optional 7"/8"). For heavy units the packing format is part of the quote: skid, crate or container loading changes both the freight cost and the unloading equipment required on site.
Customisation & OEM Service
Options include wear-liner grade, drive type and the guards and chute work around the discharge. Share the installation conditions and a feasibility answer is returned with the price. For this item, minimum order quantity is 1 Piece and the reference price starts at US$1.00 per set.
Ordering & Samples
A pre-shipment inspection is normally arranged so the build, the wear parts and the drive can be checked before the unit is crated. Quotation follows the final specification and shipping terms.

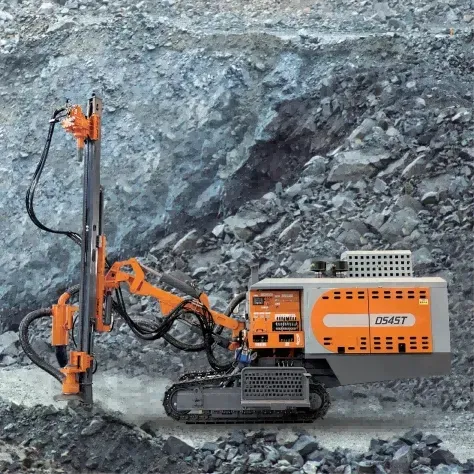

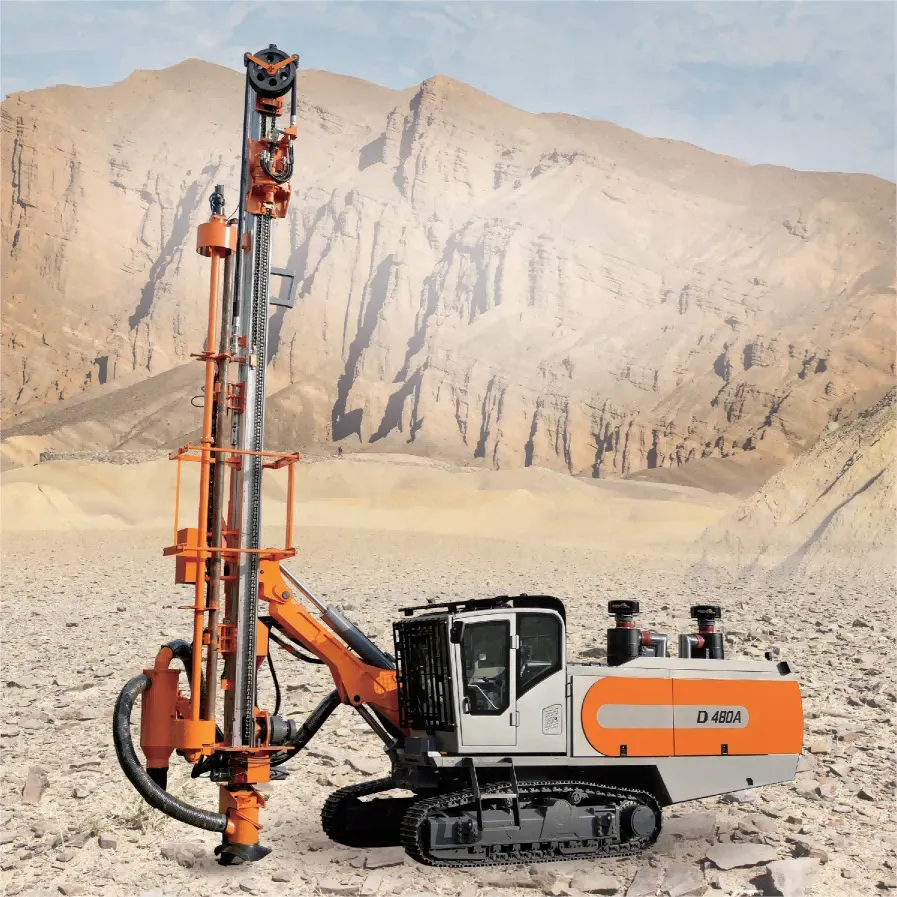

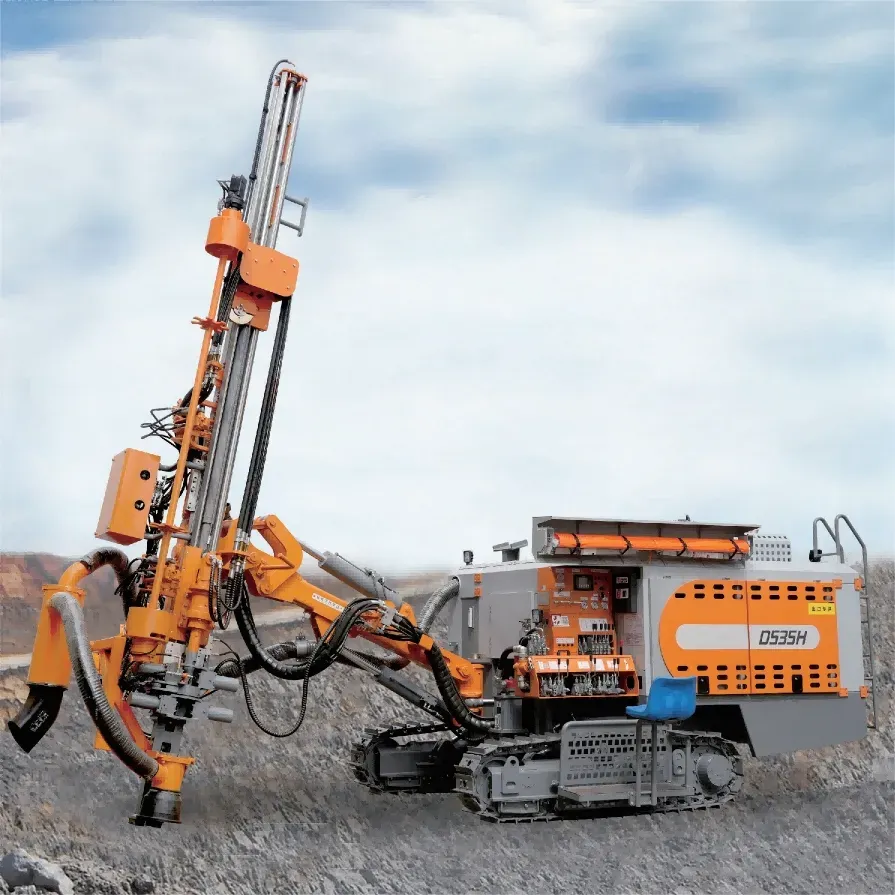

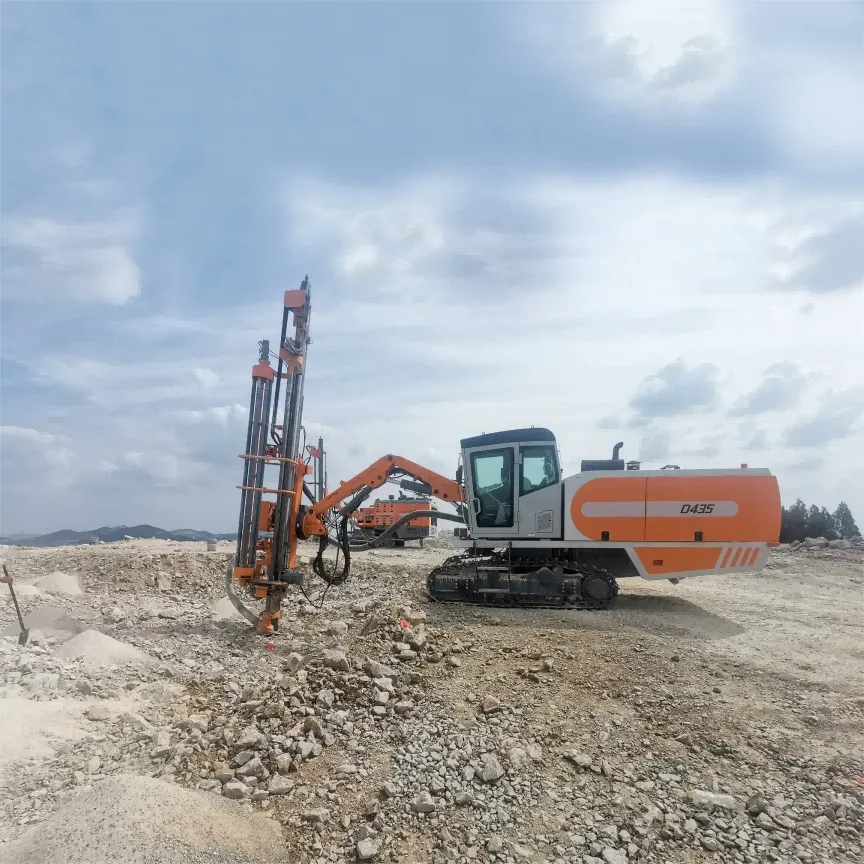

Product Images
Specifications on this page are those published for the item. Final parameters, configuration and lead time are confirmed on quotation.
